Midea RSJ-15/190RDN3-C User Manual

Page 2
Model HP170 (RSJ-15/190RDN3-C)
Modes Economy Hybrid E-Heater
Hot water heating capacity 1500W
Heat Pump E-Heater
2150W
1500W 2150W
Rated input power/current 780W/3.4A 2780W/12.1A 2150W/9.3A
Power supply 220-240V~ 50Hz
Protection Over-load Protector, Temp Controller & Protector, Electric Leakage Protector
Compressor power / E-heater power 440W / 2150W
Water
pipeline
system
Outlet water temperature Default 60°, (60°-70° adjustable)
Water side exchanger Outer coil inner water tank
Inlet / Outlet connector diameter DN20
Drain connector diameter DN20
PTR valve connector diameter DN20
Maximum pressure 1000kPa
Exchanger air
Side
Material Hydrophilic aluminium fin, inner groove copper tube
Motor power 40W
Air inlet / outlet Air in from Sides / Air out from Rear
Fusible link type T20A 250VAC
Refrigerant R134a (800g)
Dimension Ø568×1580mm
Water tank capacity 170L
Net weight 90kg
The test conditions: 1.Test temperature 15/12°C (DB/WB) / 2. Water temperature from 15°C up to 45°C.
Fig.4-4
T3: Evaporator Temp. Sensor
T4: Ambient Temp. Sensor
T5L: Tank Temp. Sensor
TP: Discharge Temp. Sensor
Earthing
TH: Suction Temp. Sensor
Ambient temperature sensor
Suction temperature sensor
CN20
SW3
SW3-2
SW2
SW2-1
Without
2150W
1070W 3200W
1600W
Fan capacitor
1.3 System Specifications

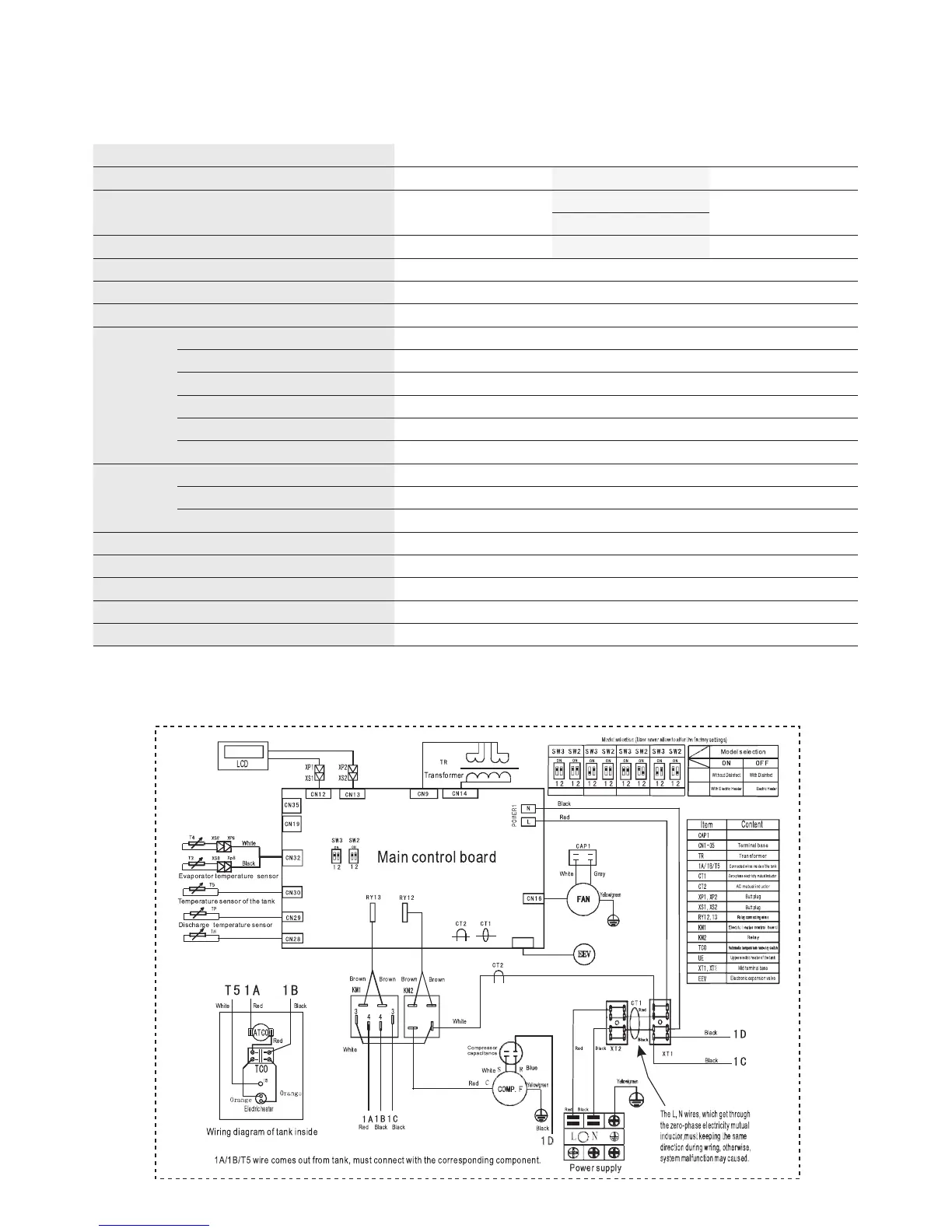

1.4 Electrical Schematic
