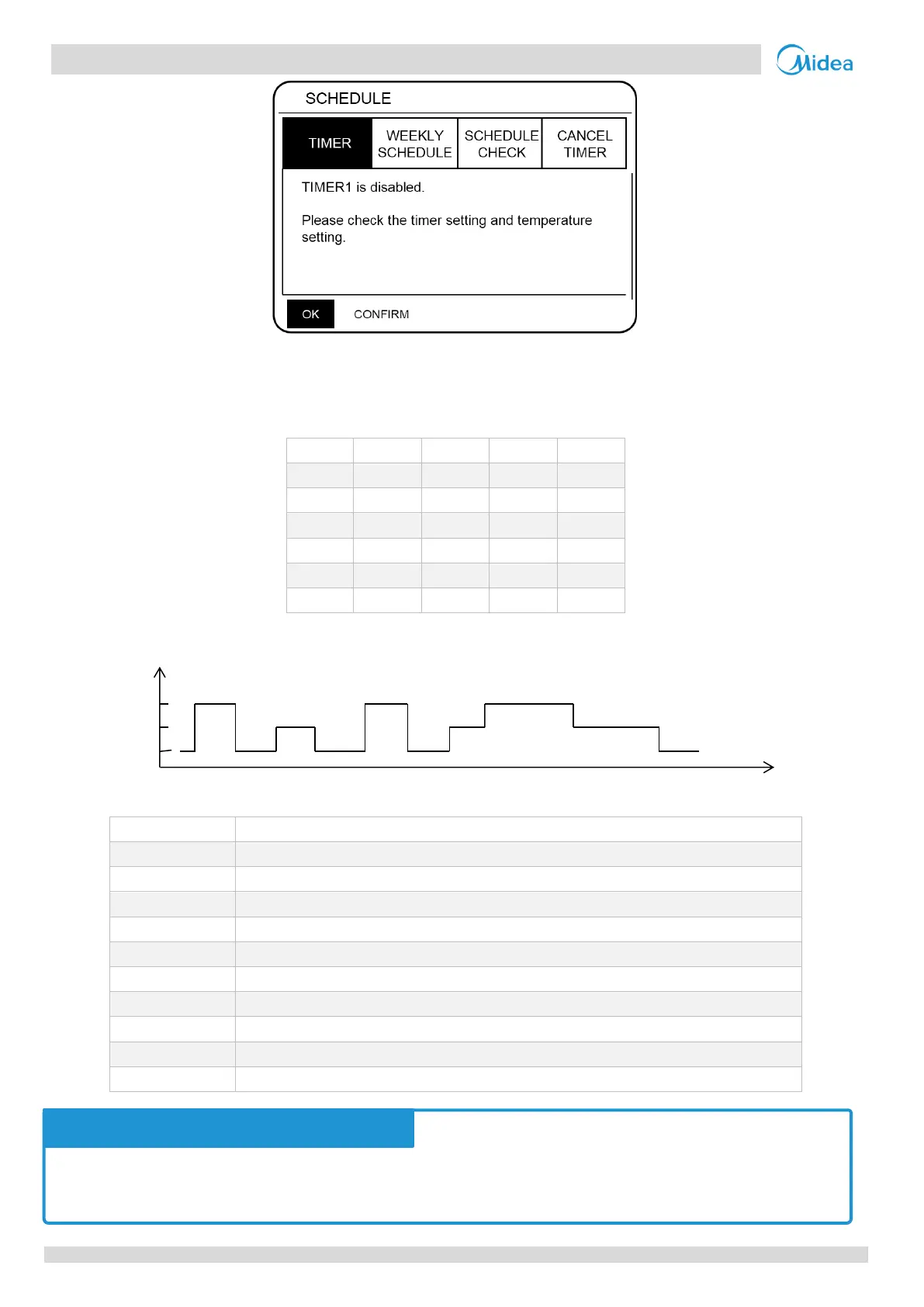

For example:
Six groups of schedules are set, as shown in the following table:
No.
START
END
MODE
TEMP.
1
01:00
03:00
DHW
70
2
07:00
09:00
HEAT
50
3
11:30
13:00
DHW
70
4
14:00
16:00
HEAT
50
5
15:00
19:00
DHW
70
6
18:00
23:30
HEAT
50
The hydraulic module will operate as shown in the following figure:
TIME
The operation of the controller
01:00
DHW mode is turned ON
03:00
DHW mode is turned OFF
07:00
HEAT MODE is turned ON
09:00
HEAT MODE is turned OFF
11:30
DHW MODE is turned ON
13:00
DHW MODE is turned OFF
14:00
HEAT MODE is turned ON
15:00
DHW MODE is turned ON and HEAT MODE is turned OFF
18:00
HEAT MODE is turned ON and DHW MODE is turned OFF
23:30
HEAT mode is turned OFF
Caution
If the start time is the same as the end time, the schedule is invalid.
Notes for installers and service engineers

01:00
03:00
09:00
11:30
14:00
15:00
DHW
HEAT
07:00
13:00
16:00
19:00
23:30
18:00
OFF
