7.3.4 Close the window sash securely against the window.

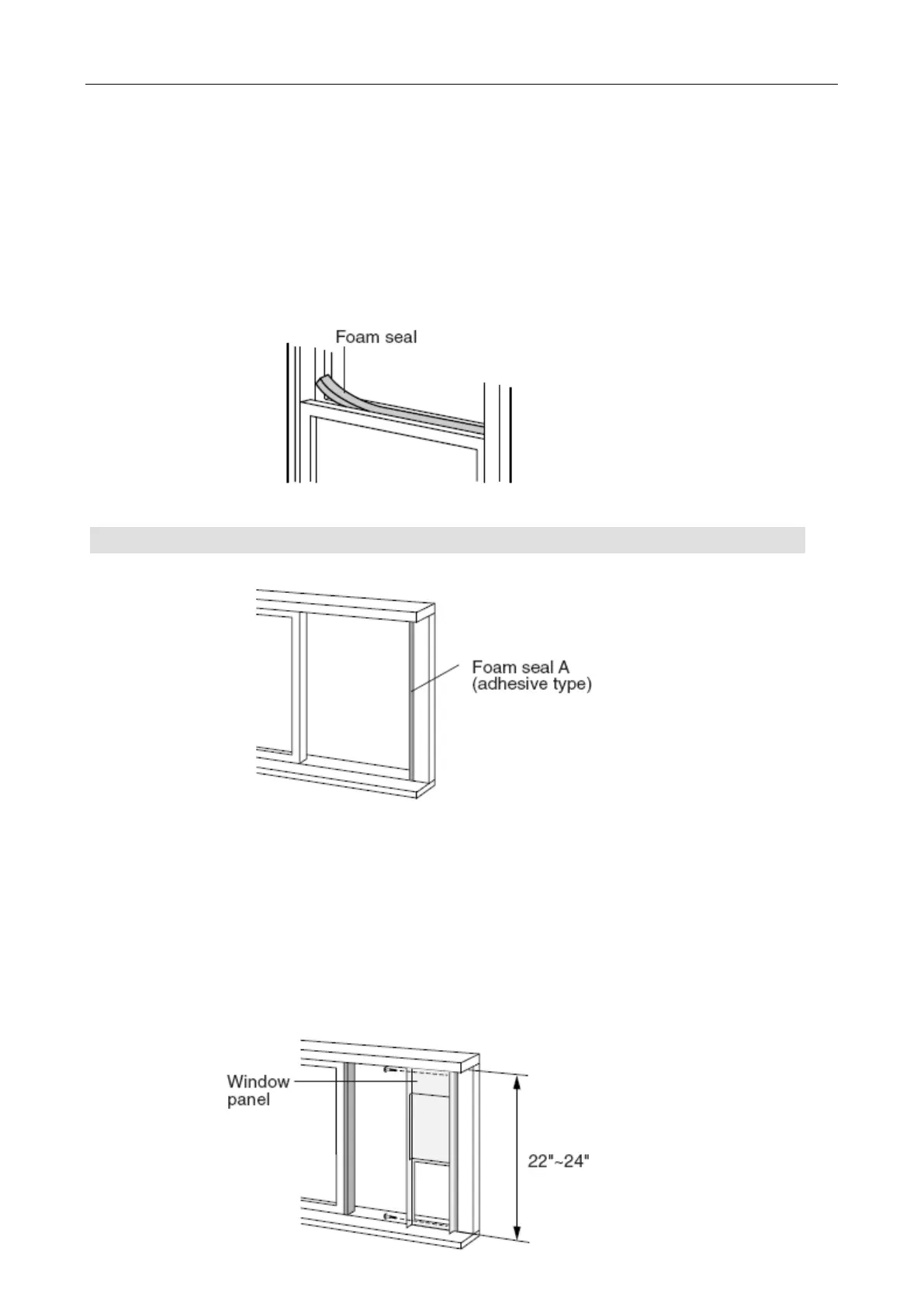

7.3.5 Cut the foam seal to an appropriate length and sealing the open gap between the top
window sash and outer window sash. Show as below picture.
7.4 Installation in a sliding sash windows
7.4.1 Cut the foam seal to a proper length and adhesive to the window frame.
7.4.2 Attach the window panel to the window stool.
Adjust the length of the sliding window panel according to the width of window, short the
adjustable panel if the width of window is less than 26”.
Open the sliding sash and place the window panel on the window stool.
Secure the sliding window panel to the window stool with 2 screws.
