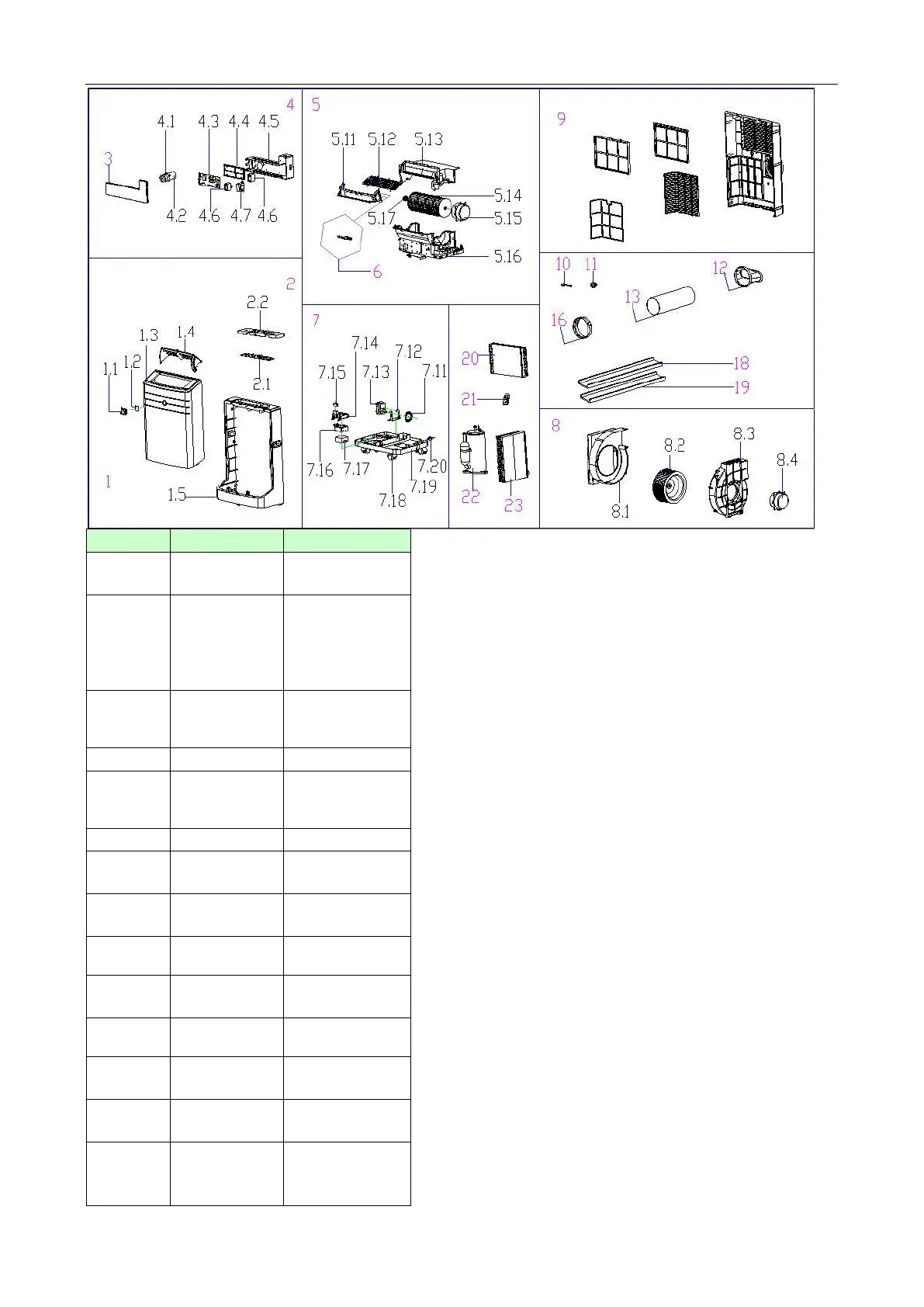

20
No.
Part Name
BOM code
1
Front panel
assembly
201125190041
1.1
Window for
receiving
remote
controller
signal
201125190043
1.2
Receiving
board
assembly
201325290014
1.3
Front panel
201125190044
1.4
Cover of
Air-out frame
assembly
201125190039
1.5
Panel(Mid)
201125190042
2
Display box
assembly
2033252A0019
2.1
display board
assembly
201325490127
3
E-part box
cover
201225590019
4
E-Part box
assembly
203325390080
4.1
Capacitor
clamp
201225590021
4.2
Compressor
capacitor
202401000810
4.3
Main control
board
201325190032
4.4
Installation
board for Main
control board
201125190038
