V6R Series Engineering Data Book
2.2 Combinations of Units
22HP

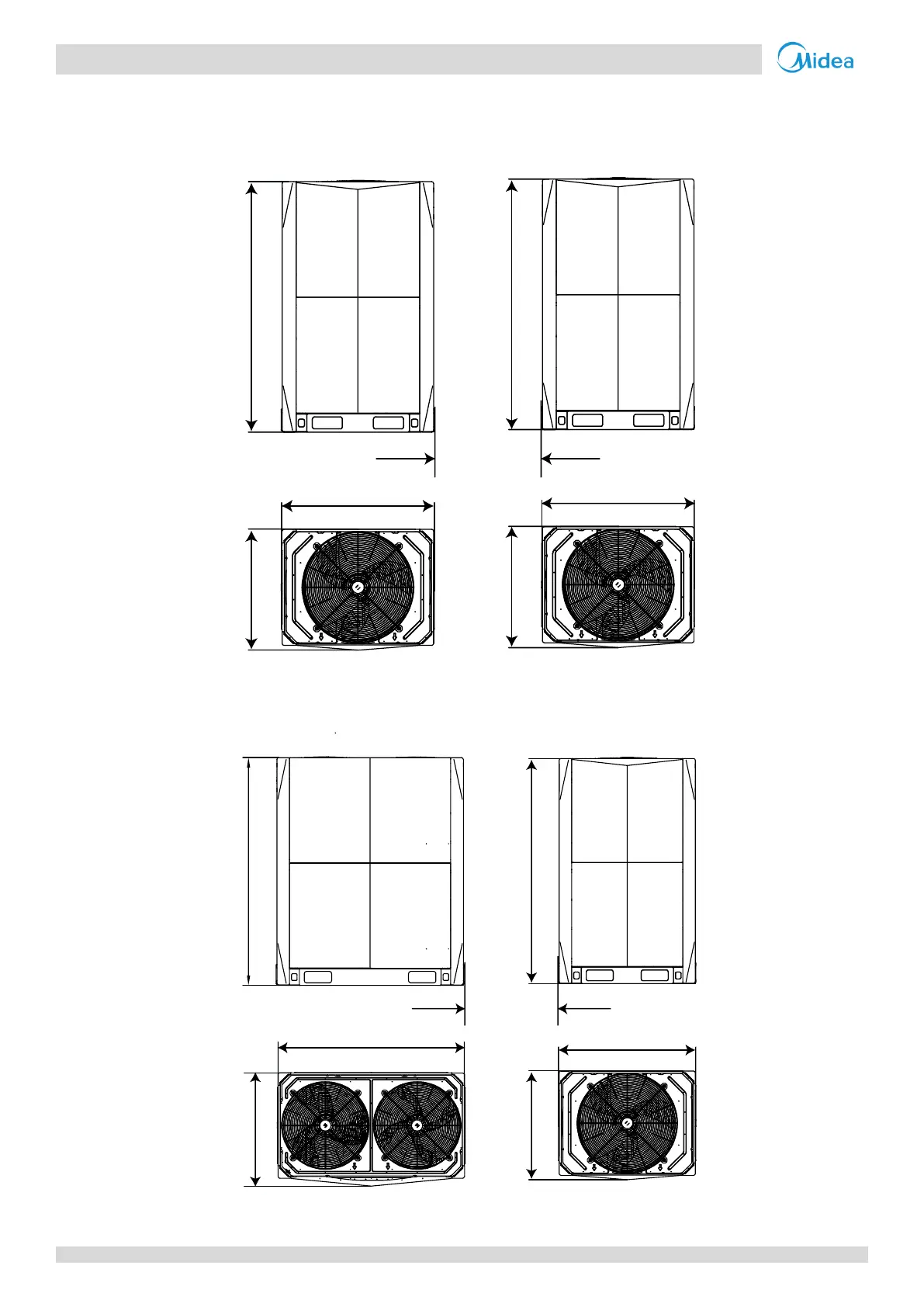

Figure 2-2.3: 22HP dimensions (unit: mm)
24/26/28/30HP
Figure 2-2.4: 24/26/28/30HP dimensions (unit: mm)
1635
790
990
1635
790
990
100-500
Outdoor unit 1
Outdoor unit 2
1635
790
990
Outdoor unit 1
1635
1340
825
100-500
Outdoor unit 2
