Midea V6R Series

V6R VRF 50/60Hz
33
Part 2
-
Outdoor Unit Engineering Data
2 Dimensions
2.1 Single Units
8/10/12HP

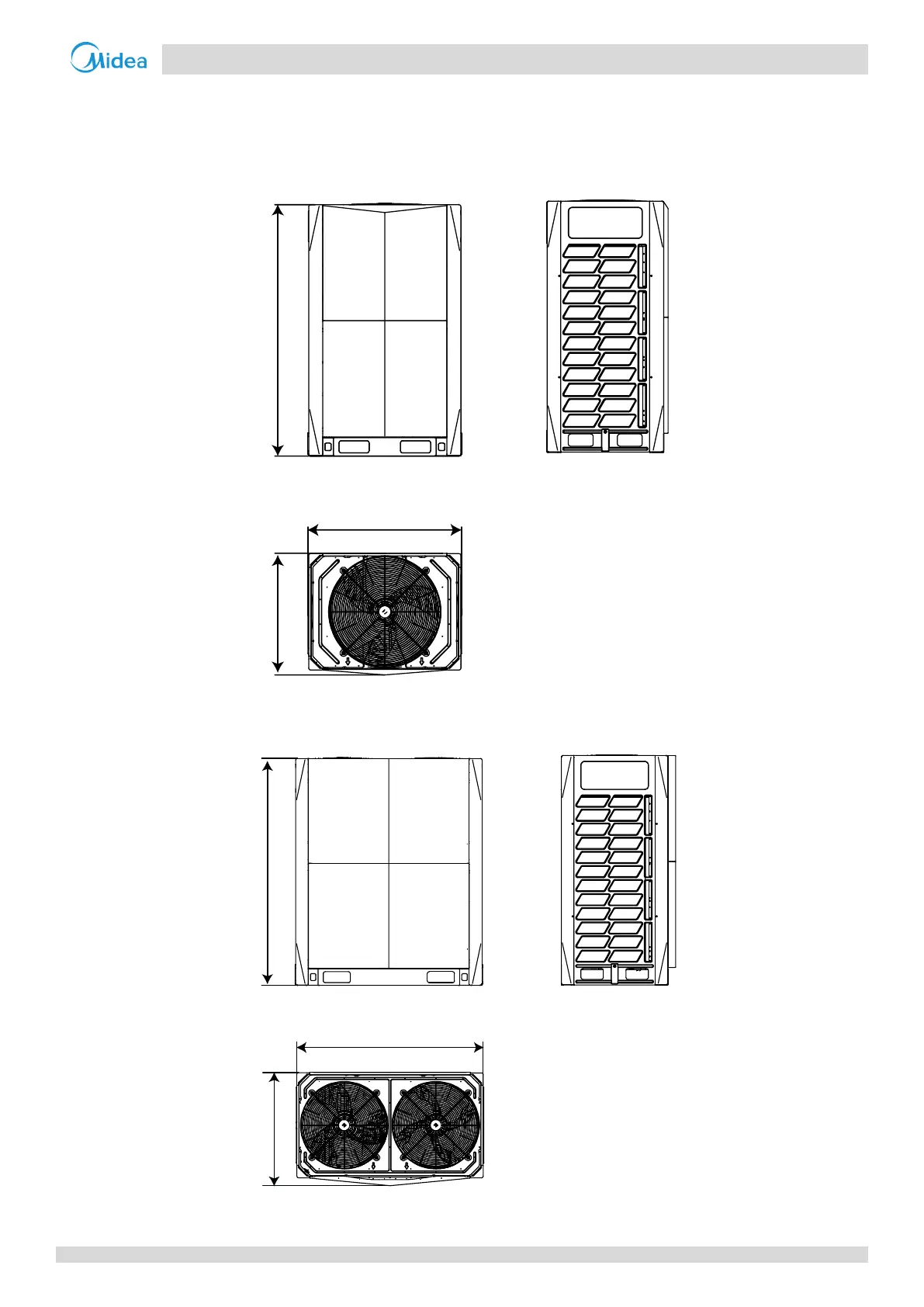

Figure 2-2.1: 8/10/12HP dimensions (unit: mm)
14/16/18/20HP
Figure 2-2.2: 14/16/18/20HP dimensions (unit: mm)
1635
790
990
1635
1340
825
