Series Engineering Data Book
MS04-12

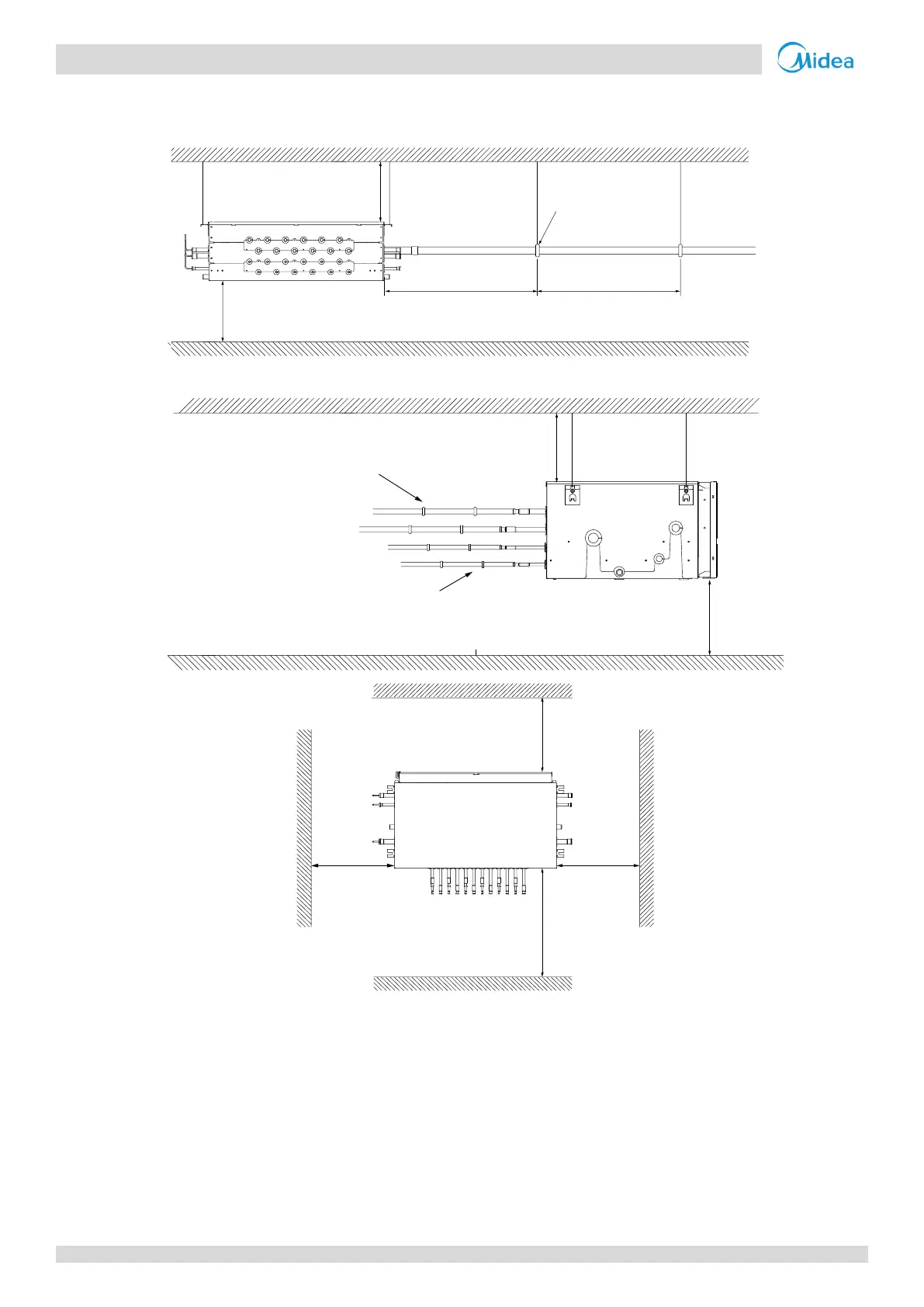

Figure 3-2.9: MS04-12 installation requirement (unit: mm)
Ceiling concrete
150 or more
1000 or less
1000 or less
Unit: mm
Firmly secured pipe
hanger
Refrigerant pipe
50 or more
Ceiling
Ceiling concrete
Ceiling
Unit: mm
150 or more
1000 or less
Firmly secured pipe
hanger
50 or more
Refrigerant pipe
500 or more
400 or more
700 or more
500 or more
Control box
Top surface of the MS
Unit: mm
