Troubleshooting Guide
4.5 Swing control
4.5.1 Horizontal swing control
 Angle range of horizontal swing
Table 4.1: Angle range of horizontal swing
heating
cooling
adjustable range
A1+A2
A1+A2
shutdown angle
A1+B/A2+C
A1+B/A2+C

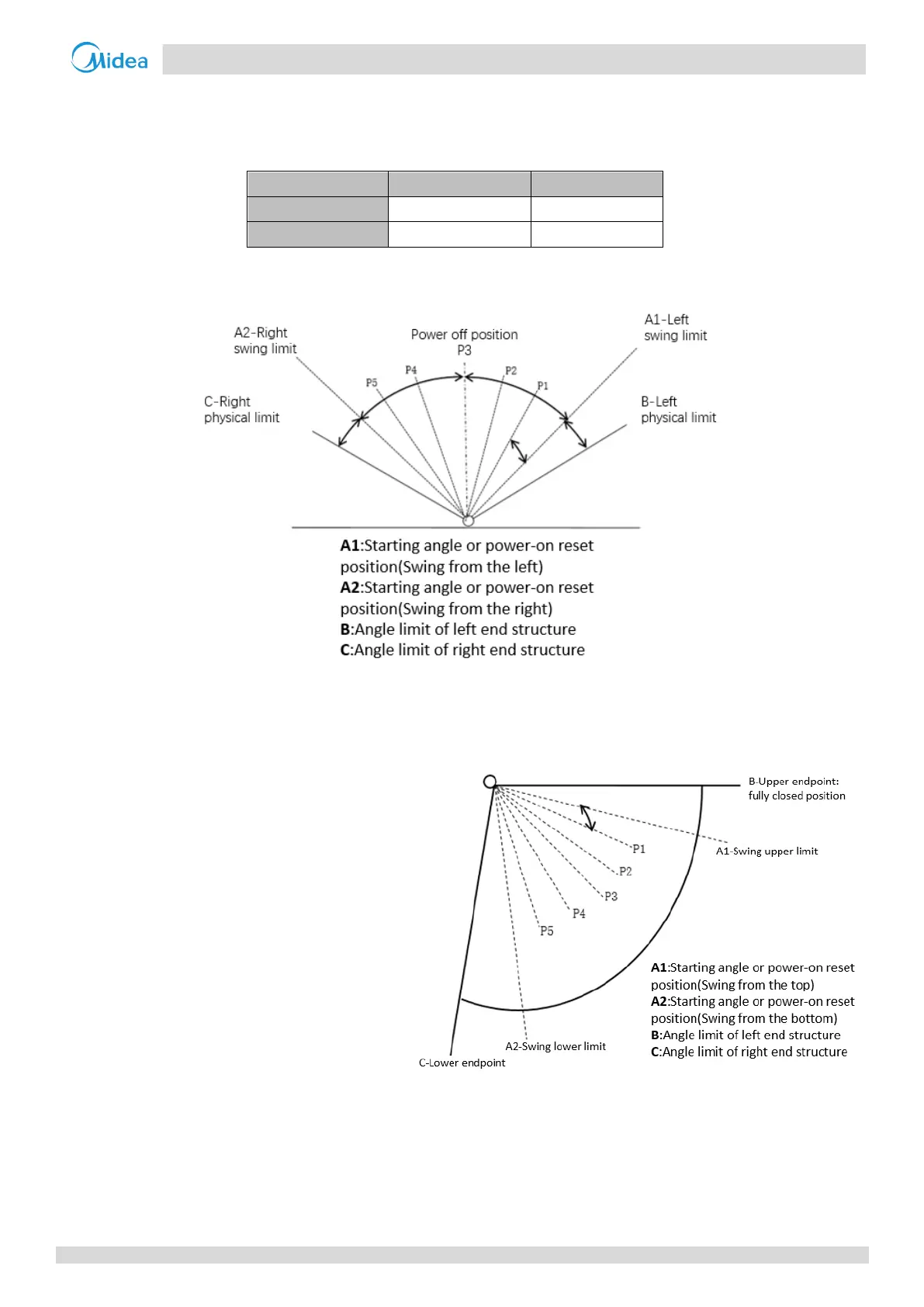

Figure 4.1 Horizontal swing angle
Note: only wall mounted(G) have Horizontal swing control
4.5.2 Vertical swing control
Figure 4.2 Vertical swing control
Different IDU series have different adjustable
swing angle and default swing angle under
different functions.
And each operation mode has its default
adjustable range of swing angle. P1-P5 values vary
because of the different operation modes and IDU
series.
For details, please refer to table 4.2, table 4.3 and
Figure 4.2.
