Midea V8 VRF Series User Manual

V8 VRF Indoor Units
8
Midea
V8
Series VRF Indoor Units
1.3 Arc Duct

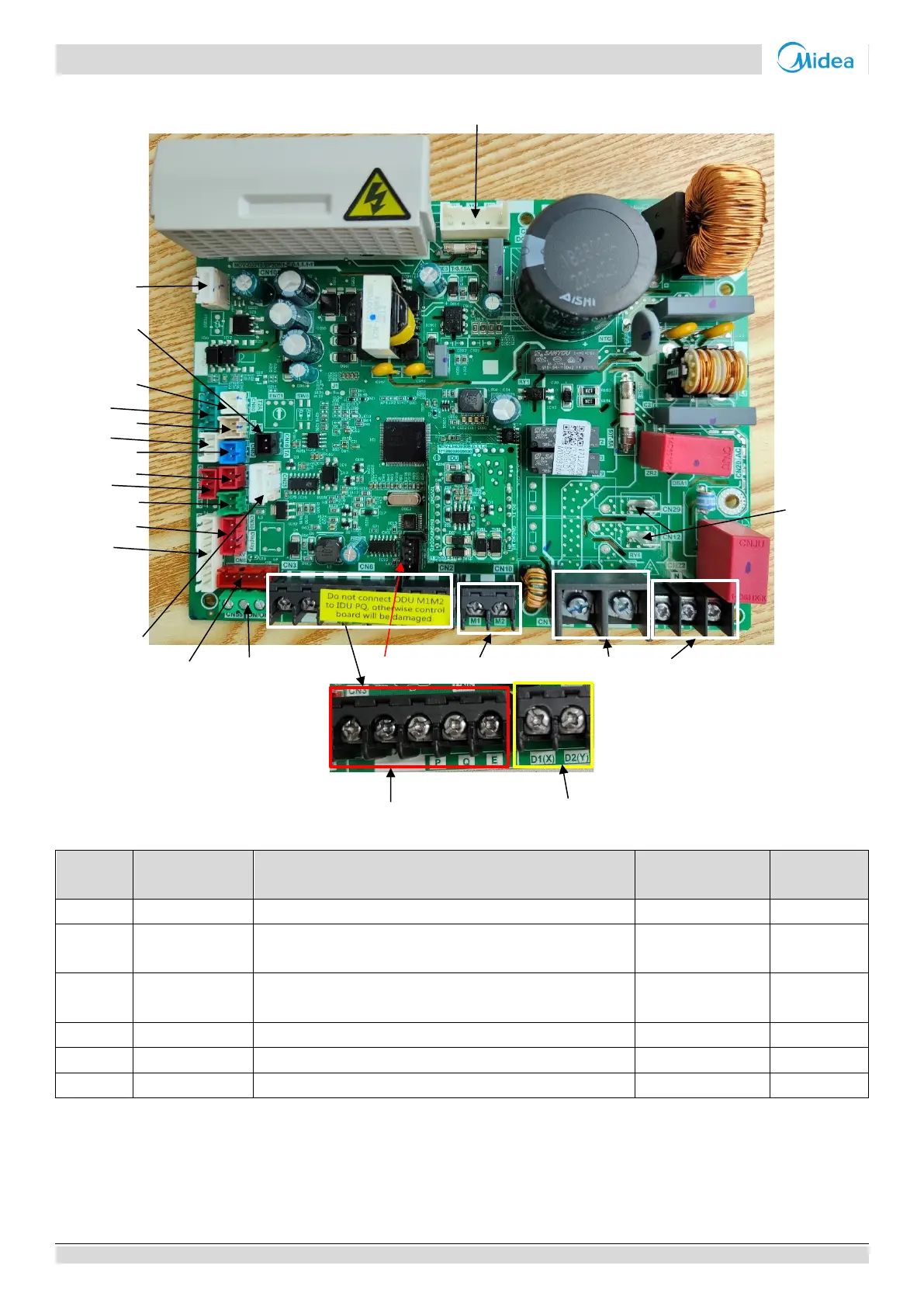

Figure 1.3: Arc Duct main PCB ports
Table 1.5: Arc Duct main PCB ports
Label in
Figure 1.3
Code
Content
Port voltage
Note
1
CN1(L.N)
AC power input
220V AC
Standard
2
CN22
(ALARM,N,AC2)
AC power output Used for customization function:
alarm/Strong electric sterilization module
220V AC
Standard
3
CN12(H-L)
CN29(H-N)
Reserved
220V AC
/
4
CN100
Power supply for fan motor
Actual voltage
Standard
5
CN4
Program burning port(fan motor)
5V DC
[5]
Standard
6
CN80
T2A Temperature sensor connection
3.3V DC
Standard
Table continued on next page …
23
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
