Midea WHS-625FWEW1 - Refrigeration System; Refrigeration System Working Principle; Cooling Pipeline and Drain Pipe Inside the Cabinet

Service Manual_2020-V1.0
18

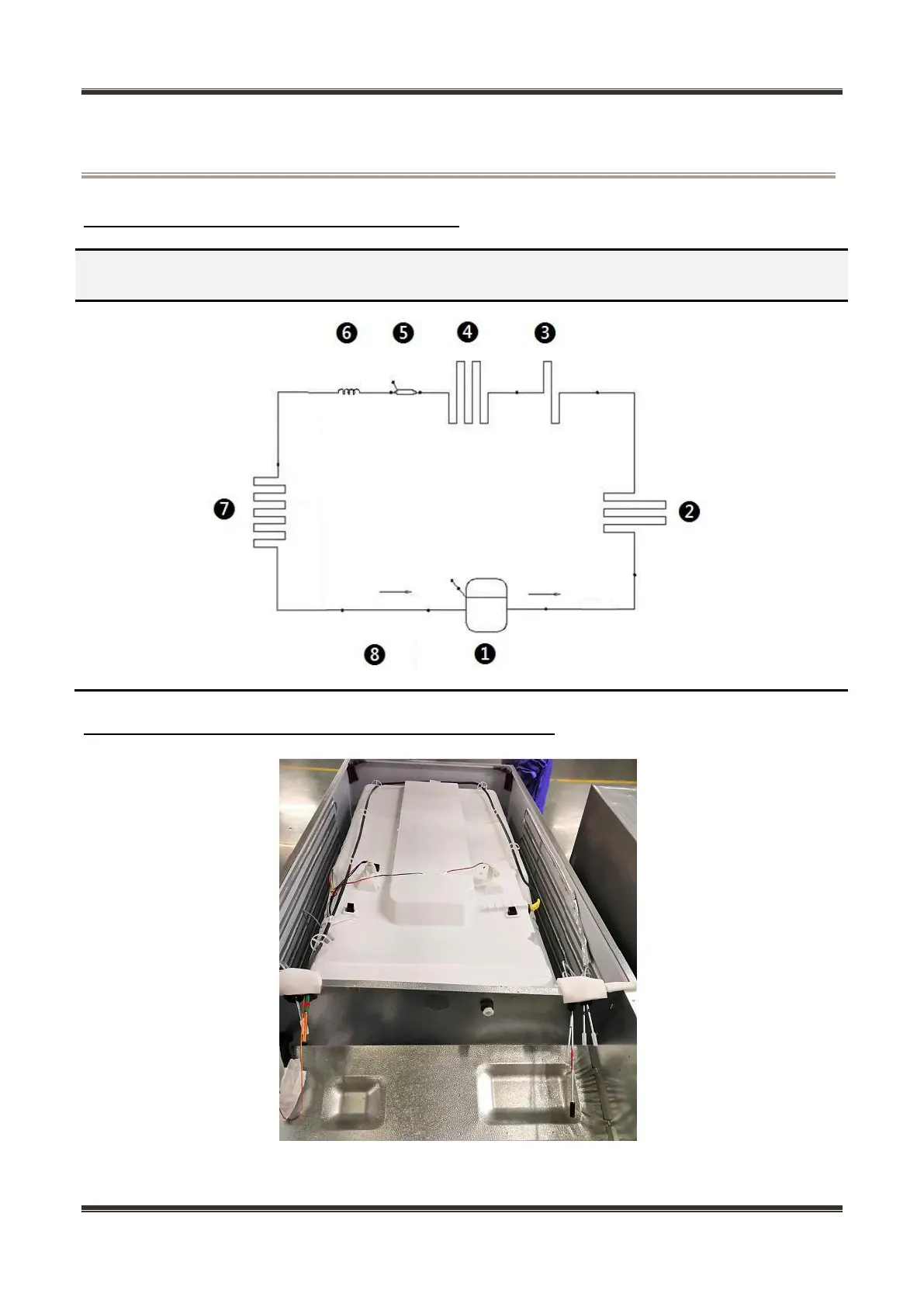

6. Refrigeration system
6.1 Refrigeration system working principle
❶Compressor→❷Right condenser→❸Anti-condensation tube→❹Left Condenser→❺Dry
filter→❻Capillary tube→❼Evaporator→❽Suction tube→❶Compressor
6.2 Cooling pipeline and drain pipe inside the cabinet
