3.2 Radio:

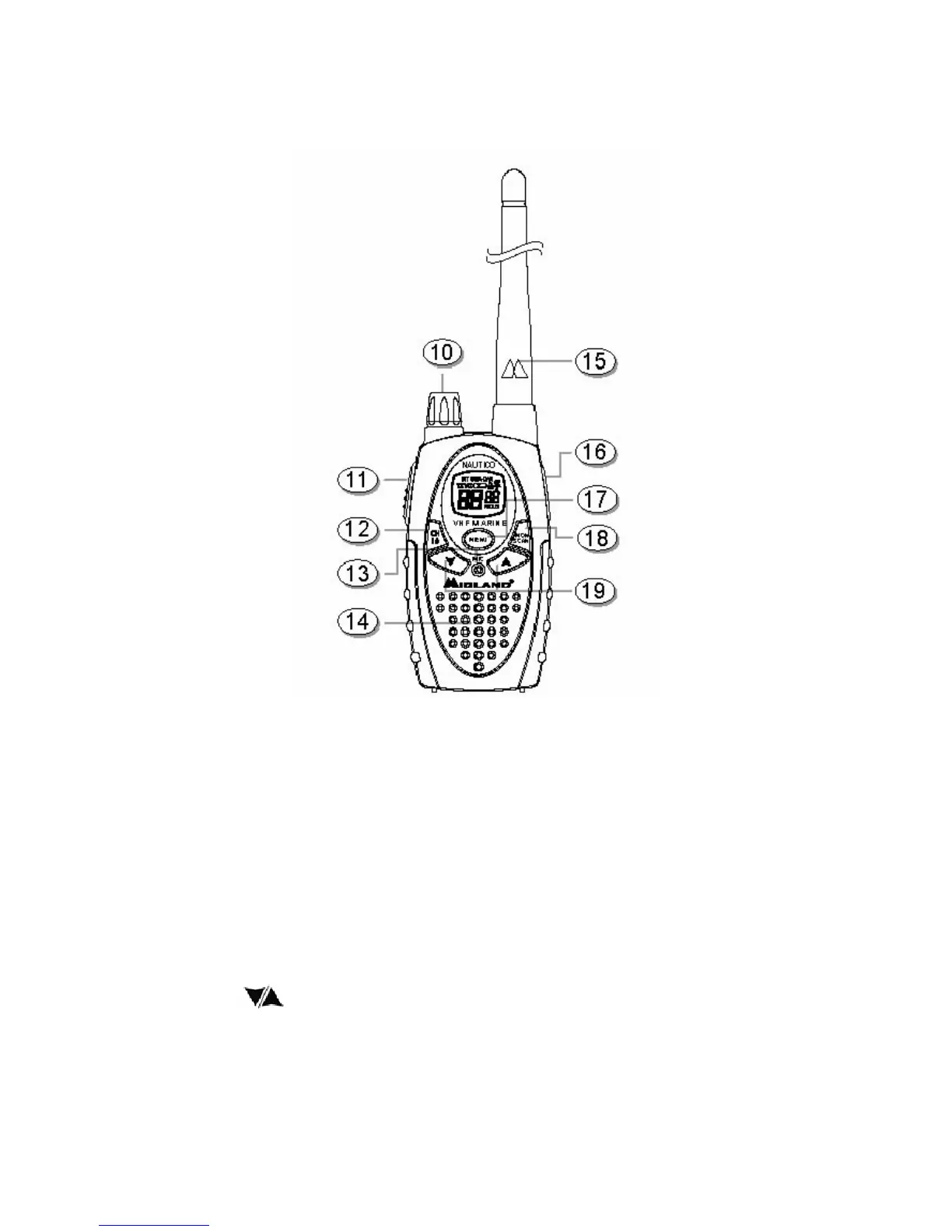

Refer to the following images to identify the various parts of the device:
10. VOLUME control – On/off switch for the device and adjusts volume of reception.
11. Button PTT (press to talk) / CALL (CALL function, see par.6.5) – Press this button to switch
to transmission
12. Button 16 – Press this button to instantly recall channel 16.
13. Built-in MICROPHONE – Here is where sound is picked up by the microphone.
14. Built-in SPEAKER – Here is where the speaker is housed.
15. ANTENNA – Receives and transmits radio signals.
16. Socket MIC/CHG (under protective cover) – To connect to external audio devices
(headphones, microphone etc.) and to the battery charger.
17. MENU button – Press this button to display the device’s menu.
18. MONITOR/SCAN button – Press this button once to activate SCAN (scanning of channels).
Keep the same button pressed for about 2 seconds to activate MON function. This function
temporarily cuts off Squelch (for weak signals)
19. Scroll buttons – Press these buttons to select channel number and to change setting
within the MENU.
6
