CONTROLS
LCD DISPLA
Y

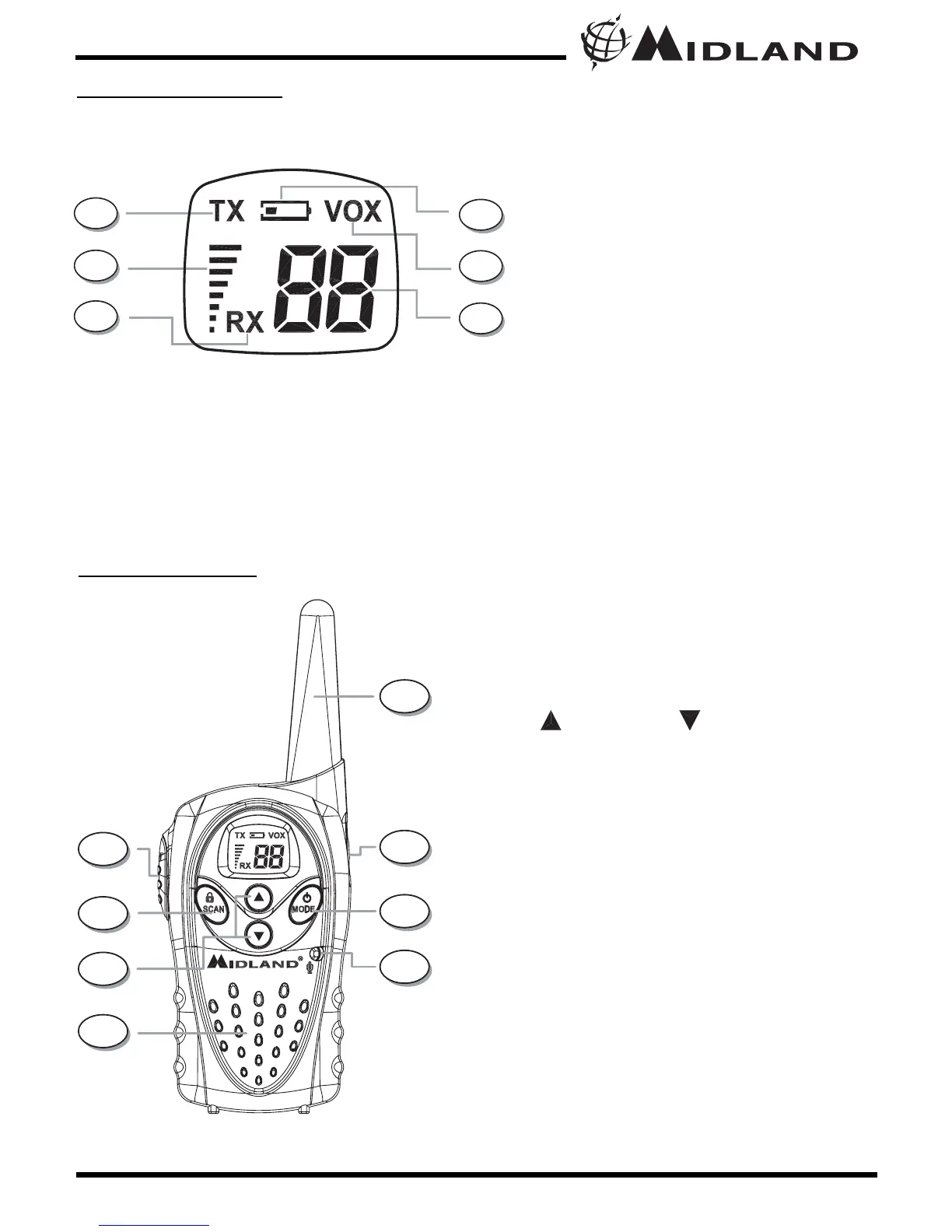

1. TRANSMIT (TX) ICON – Indicates
radio is transmitting a signal.
2. VOLUME METER – Indicates the
volume setting of the radio.
3. RECEIVE (RX) ICON – Indicates radio
is receiving a transmission.
4. LOW BATTERY ICON – Indicates the
battery level is low.
5. VOX ICON – Indicates when VOX
mode is active.
6. CHANNEL NUMBER – Changes from
1~22 on GMRS/FRS band.
7. PTT Button – Press and hold to transmit
voice communication.
8. SCAN/LOCK Button – Press to enter
SCAN mode. Press and hold to turn KEY
LOCK on/off.
9. UP and DOWN Button – Make
adjustments in MENU mode.
10. SPEAKER – Built-in speaker.
11. ANTENNA
12. EXTERNAL SPEAKER/MIC/CHG. JACK
13. POWER / MODE Button – Press and
hold for at least 3 seconds to turn the
radio on/off. Press momentarily to
access Menu mode.
14. MIC – Built-in microphone. mode.
