Midland LXT600 Series User Manual

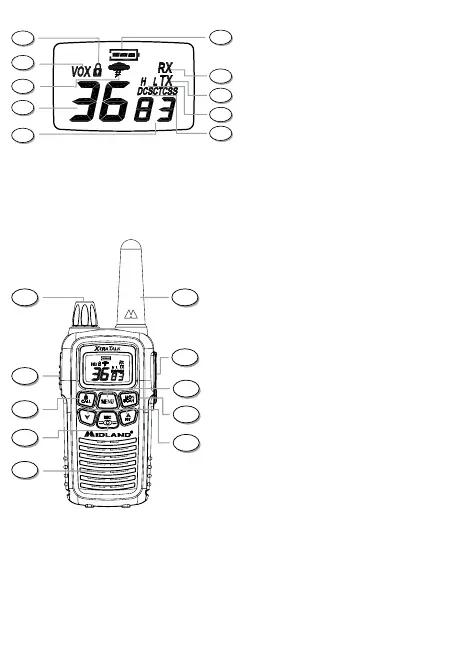

LCD DISPLAY
1. KEY LOCK ICON – Indicates KEY
LOCK mode is on.
2. VOX ICON – Indicates when VOX
mode is active.
3. NOAA WEATHER (WX) BAND ICON–
Indicates when the radio is in Weather
Band mode.
4. CHANNEL NUMBER – Changes from
1~36 on GMRS/FRS band (1~10 on
WX band).
5. PRIVACY CODE – Indicates Privacy
Code selected by user (oF~38/oF~83).
It can only be set in Ch 1~22.
6. BATTERY METER – Indicates the
battery level.
7. RECEIVE (RX) ICON – Indicates radio
is receiving a transmission.
8. TRANSMIT (TX) ICON – Indicates
radio is transmitting a signal.
9. TRANSMIT POWER LEVEL ICON –
Indicates TX Power setting (H/L).
10. PRIVACY CODE ICON – Indicates
Privacy Code setting (CTCSS/DCS).
11. POWER/VOLUME KNOB – Turn
clockwise to turn the power on and
increase the volume level. Turn
counter-clockwise to decrease the
volume level and turn the power off.
12. PTT Button – Press and hold to
transmit voice communication.
13. CALL/LOCK Button – Press to send a
CALL ALERT signal. Press and hold
to turn KEY LOCK on/off.
14. MIC – Built-in microphone.
15. SPEAKER – Built-in speaker.
16. ANTENNA
17. EXTERNAL SPEAKER/MIC/CHG
JACK
18. MENU Button – Press momentarily to
access Menu mode.
19. MONITOR/SCAN Button – Press to
enter SCAN mode. Press and hold to
enter MONITOR mode.
20. UP/WX SCAN ▲ and DOWN ▼
Buttons – Make adjustments in MENU
mode. Press and hold the UP button
for 5 seconds to activate the NOAA
Weather Scan function.
CONTROLS
1
7
6
3
2
4
5
8
9
10
18
17
16
14
13
12
11
15
19
20
