BATTERY INSTALLATION
Your LXT600 Series radio operates with either a NiMH battery pack or
optional 3 AAA alkaline batteries. The belt clip should be removed (see
below) to ease installation or removal of the batteries.
To install the batteries:

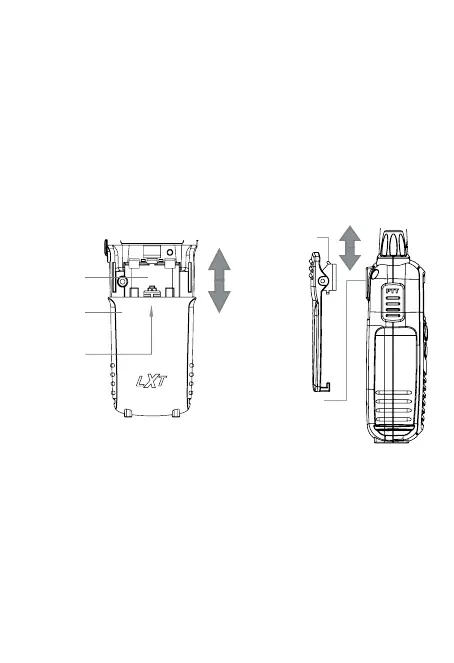

1. With the back of the radio facing you, remove the belt clip (see
diagram below) for easy access, then remove the Battery Cover by
pressing down on the top center and sliding it down from the radio.
2. Insert 3 AAA batteries observing the polarity as shown. Installing
the batteries incorrectly will prevent the unit from operating or may
damage the unit.
3. Return the Battery Cover by sliding it up on the radio. Replace the belt
clip, making sure it locks into place.
BATTERY
COMPARTMENT
BATTERY
COMPARTMENT
COVER
Press here and
push down to open
BELT CLIP
LOCK TAB
BELT CLIP
LATCH
INSTALLING THE BELT CLIP
To install the BELT CLIP, slide the clip down into the slot on the back of the
radio until the BELT CLIP LATCH clicks. To remove the BELT CLIP, press the
LOCK TAB down, then gently pull the belt clip up toward the top of the radio.
