Model ALR2 Series
Page 4
midlandusa.com

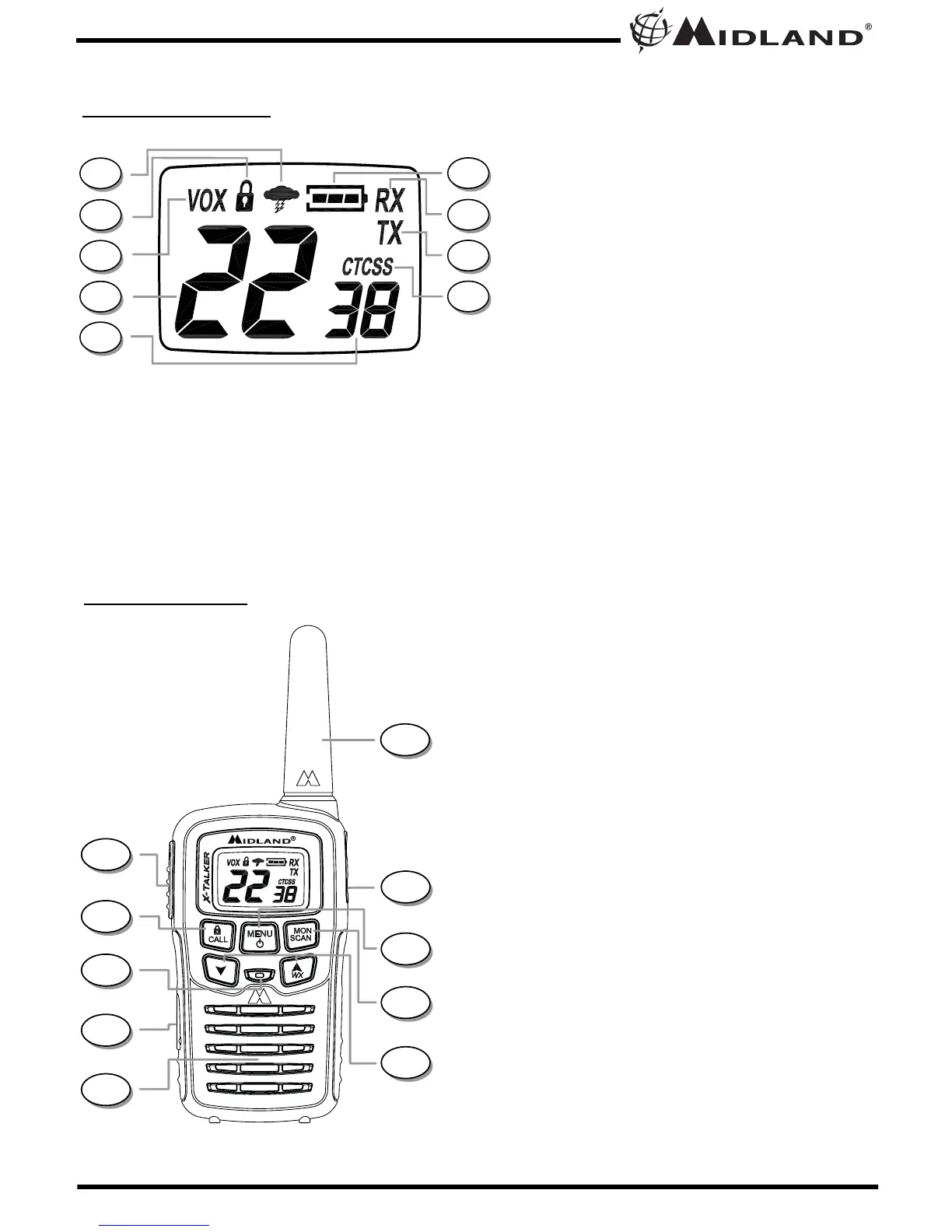

LCD DISPLAY
1. NOAA WEATHER (WX) BAND ICON –
Indicates when the radio is in Weather
Band mode.
2. KEY LOCK ICON – Indicates KEY
LOCK mode is on.
3. VOX ICON – Indicates when VOX mode
is active.
4. CHANNEL NUMBER – Changes from
1~22 on GMRS/FRS band (1~10 on WX
band).
5. PRIVACY CODE – Indicates Privacy
Code selected by user (oF~38).
6. BATTERY METER – Indicates the battery
level.
7. RECEIVE (RX) ICON – Indicates radio is
receiving a transmission
.
8. TRANSMIT (TX) ICON – Indicates radio
is transmitting a signal.
9. PRIVACY CODE ICON – Indicates
Privacy Code is on.
1
CONTROLS
10. PTT Button – Press and hold to
transmit voice communication.
11. CALL/LOCK Button – Press to send a
CALL ALERT signal. Press and hold to
turn KEY LOCK on/off.
12. MIC – Built-in microphone.
13. USB CHARGING JACK
14. SPEAKER – Built-in speaker.
15. ANTENNA
16. EXTERNAL SPEAKER/MIC JACK
17. MENU Button – Press momentarily to
access Menu mode.
18. MONITOR/SCAN Button – Press to
enter SCAN mode. Press and hold to
enter MONITOR mode.
19. UP/WX
s
and DOWN
t
Buttons –
Make adjustments in MENU mode.
Press and hold the UP button for 3
seconds to activate the NOAA Weather
Radio function.
16
15
14
12
11
10
7
6
3
2
13
17
4
5
8
9
18
19
