Midland X-Talker T50 Series User Manual

'
Model T50
Series
J::l1.j
.._.._
---------------
lil;:b"'.-1
DLAN
D e
'

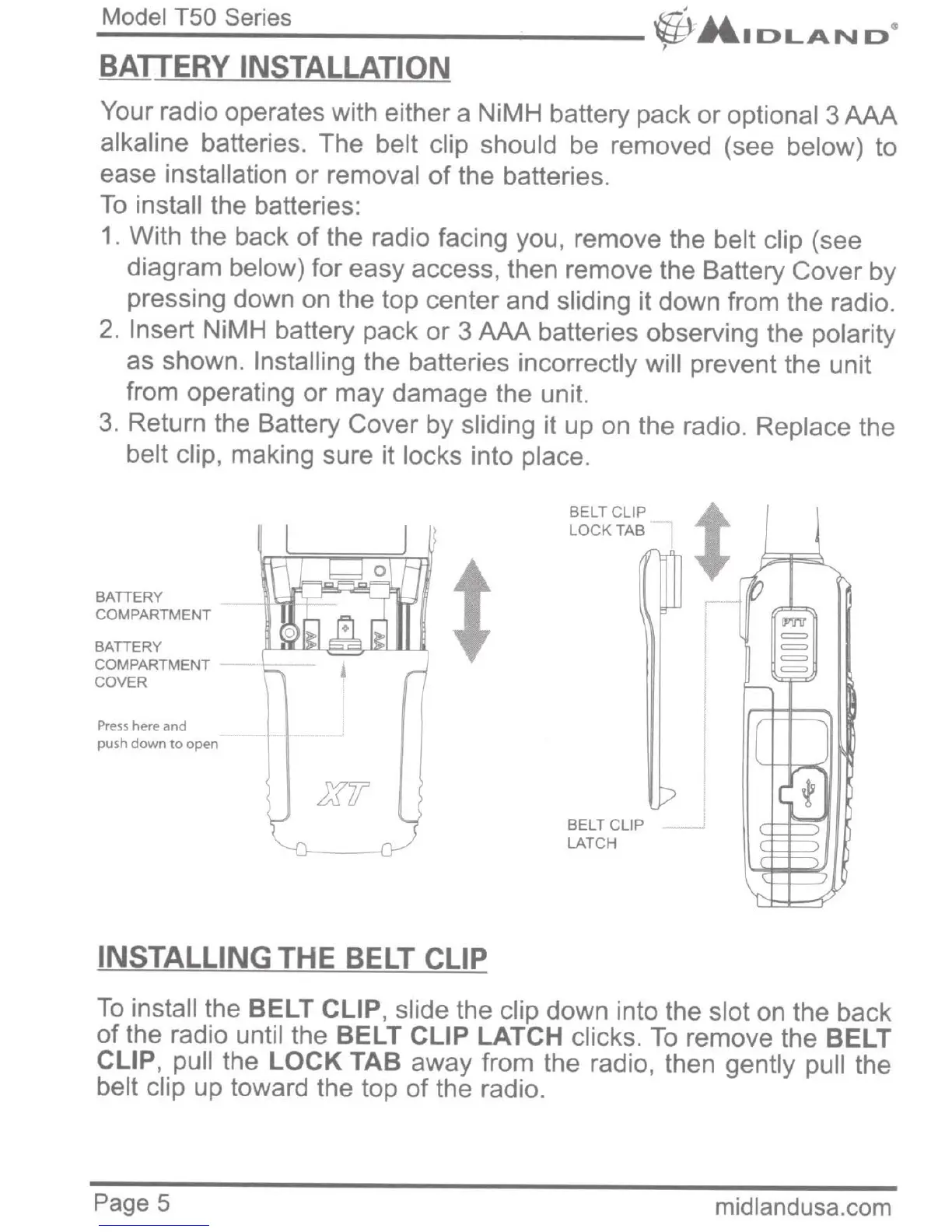

BAITERY
INSTALLATION
Your radio operates with either a NiMH battery pack or optional 3 AAA
alkaline batteries. The belt
clip
should be removed (see below) to
ease
installation or removal
of
the batteries.
To
install the batteries:
1. With the back
of
the radio facing you, remove the belt clip (see
diagram below) for easy access, then remove the Battery
Cover by
pressing down on the top center and sliding it down from the radio.
2.
Insert
NiMH battery pack
or
3 AAA batteries observing the polarity
as shown.
Installing
the batteries incorrectly
will
prevent the unit
from operating or may damage the unit.
3. Return the Battery
Cover
by sliding it up on the radio. Replace the
belt clip, making sure it locks into place.
BATTERY
COMPARTMENT
BATTERY
COMPARTMENT
~
--
COVER
Press
here and
push
down
to
open
INSTALLING
THE BELT CLIP
BELT
CLIP
LOCK
TAB
BELT
CLIP
LA
T
CH
,-
•
j
Fb,
IPU"'i'
=
L>o?
[
it'...._
f
~
\
_}
~
,L/
To
install the BELT
CLIP, slide the clip down into the slot on the back
of
the radio until the BELT
CLIP
LATCH clicks.
To
remove the BELT
CLIP, pull
the
LOCK
TAB away from the radio, then gently
pull
the
belt clip up toward the
top
of
the radio.
Page 5
