Midland X-TALKER User Manual

LCD DISPLAY

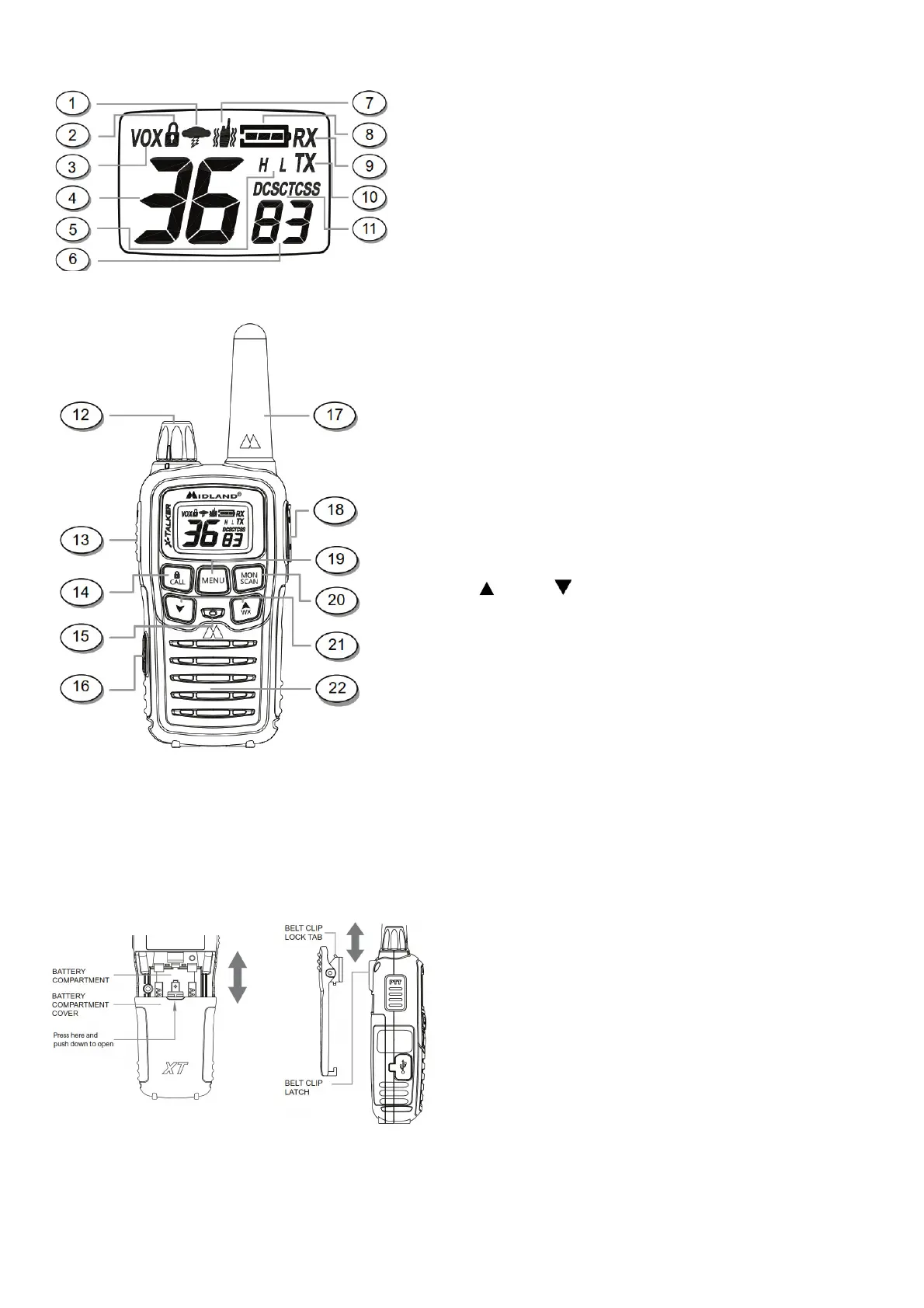

1. NOAA WEATHER (WX) BAND ICON – Indicates when the radio is in Weather Band mode.
2. KEY LOCK ICON – Indicates KEY LOCK mode is on.
3. VOX ICON – Indicates when VOX mode is active.
4. CHANNEL NUMBER – Changes from 1~36 on FRS band (1~10 on WX band).
5. TRANSMIT POWER LEVEL ICON – Indicates TX Power setting (H/L).
6. PRIVACY CODE – Indicates Privacy Code selected by the user (oF~38/oF~83). It can only be set in Ch
1~22.
7. VIBRATE ALERT ICON – Indicates when the Vibrate-Alert feature is on (Model T65
only).
8. BATTERY METER – Indicates the battery level.
9. RECEIVE (RX) ICON – Indicates radio is receiving a transmission.
10. TRANSMIT (TX) ICON – Indicates radio is transmitting a signal.
11. PRIVACY CODE ICON – Indicates Privacy Code setting (CTCSS/DCS).
CONTROLS
12. POWER/VOLUME KNOB – Turn clockwise to turn the power on and increase the volume level.
Turn counter-clockwise to decrease the volume level and turn the power off.
13. PTT Button – Press and hold to transmit voice communication.
14. CALL/LOCK Button – Press to send a CALL ALERT signal. Press and hold to
turn KEY LOCK on/off.
15. MIC – Built-in microphone.
16. USB CHARGING JACK
17. ANTENNA
18. EXTERNAL SPEAKER/MIC JACK
19. MENU Button – Press momentarily to access Menu mode.
20. MONITOR/SCAN Button – Press to enter SCAN mode. Press and hold to enter MONITOR mode.
21. UP/WX SCAN and DOWN Buttons – Make adjustments in MENU mode. Press and hold the
UP button for 5 seconds to activate the NOAA Weather Scan function.
22. SPEAKER – Built-in speaker.
BATTERY INSTALLATION
Your radio operates with either a NiMH battery pack or optional 3 AAA alkaline batteries. The belt clip should be removed (see below) to ease the installation or removal of the batteries.
To install the batteries:
1. With the back of the radio facing you, remove the belt clip (see diagram below) for easy access, then remove the Battery Cover by pressing down on the top center and sliding it
down from the radio.
2. Insert NiMH battery pack or 3 AAA batteries observing the polarity as shown. Installing the batteries incorrectly will prevent the unit from operating or may damage the unit.
3. Return the Battery Cover by sliding it up on the radio. Replace the belt clip, making sure it locks into place.
INSTALLING THE BELT CLIP
To install the BELT CLIP, slide the clip down into the slot on the back of the radio until the BELT CLIP LATCH clicks. To remove the BELT CLIP, pull the LOCK TAB away from the radio,
then gently pull the belt clip up toward the top of the radio.
CHARGING THE BATTERY PACK
Your radios are equipped for using a rechargeable NiMH battery pack (BATT3R) which can be recharged by inserting one end of the USB Cable into a USB power source, and the other
end into the radio USB charging jack, or with the optional desktop charger (as described below). While charging, the Battery Meter will flash from 1 to 3 bars.
The LCD display will show FULL when charging is complete. For maximum battery life, Midland recommends charging the battery pack when the low battery icon comes on. Remove the
radios from the charger when the charging is finished.
To charge using the Desktop Charger:

Midland X-TALKER Specifications

General

Range	Up to 38 miles
Weather Alert	Yes
Rechargeable Battery	Yes
NOAA Weather Scan	Yes
VOX	Yes
Waterproof	No
Privacy Codes	121 privacy codes
Power Source	Rechargeable battery pack or 3 AAA batteries
Water Resistance	Yes
Channels	22 Channels + 14 Extra Channels (36 Total)
