Midmark 626 - Alternative PC Board Access; Equipment Alert; Separating Shrouds...; Note

6
© 2018 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |
Note
The Back can be manually raised and lowered by lifting up on back section
and removing the Back Actuator clevis pin.

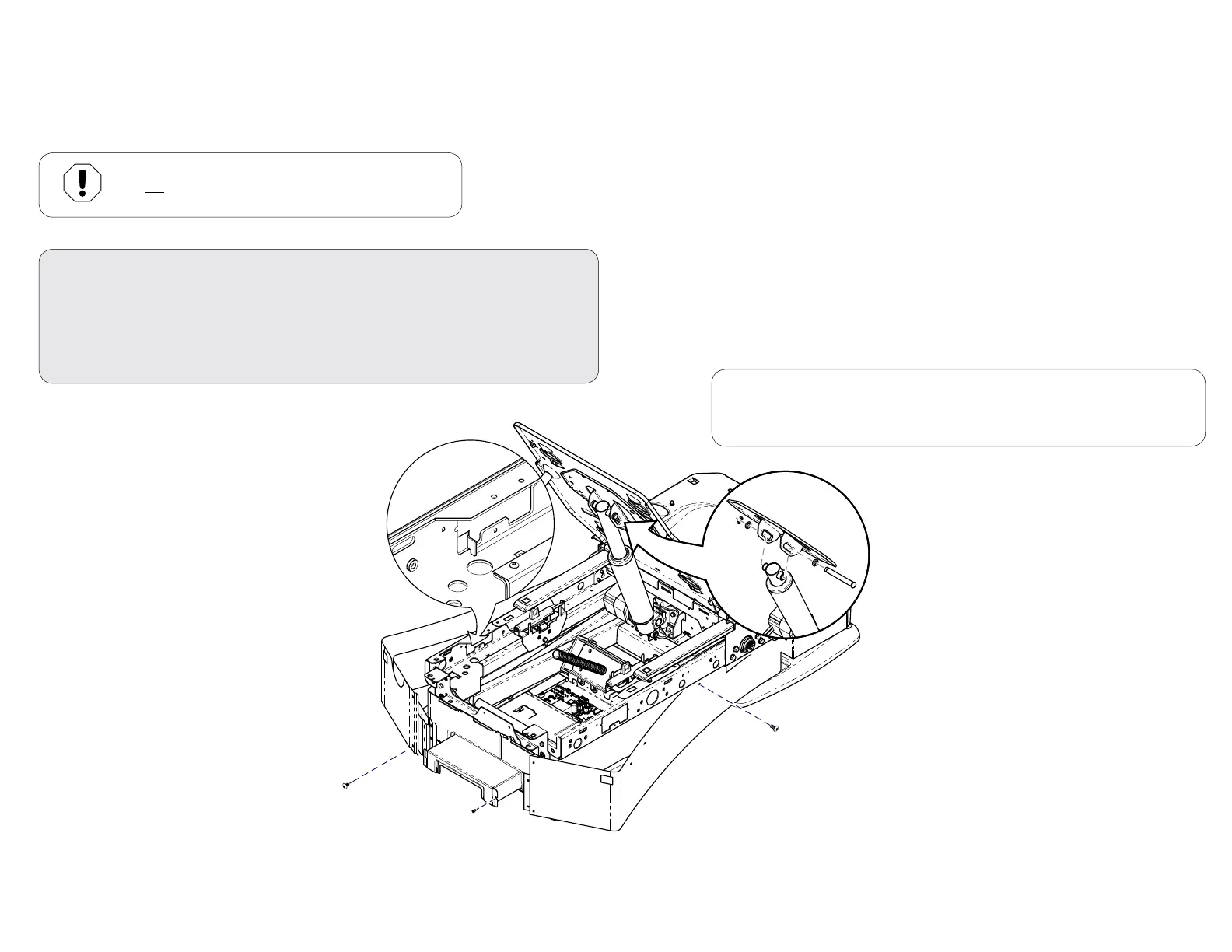

Separating Shrouds...
A) Remove two screws from both sides of Outer Shrouds.
B) Remove screws from head-end of Outer Shrouds.
C) Lift up then out on the side of Outer Shroud to disengage the Side Tab.
D) Remove screws from head-end Inner Shrouds.
E) Carefully spread Shrouds away from chair.
Equipment Alert
Do not spread shrouds more than necessary
to access PC Board or equipment could be damage.
Alternative PC Board Access
If the chair is lowered and inoperable, the Motor Control PC Board can be accessed
by separating and spreading the shrouds at the head end of chair.
