Appendix A
Preva
120

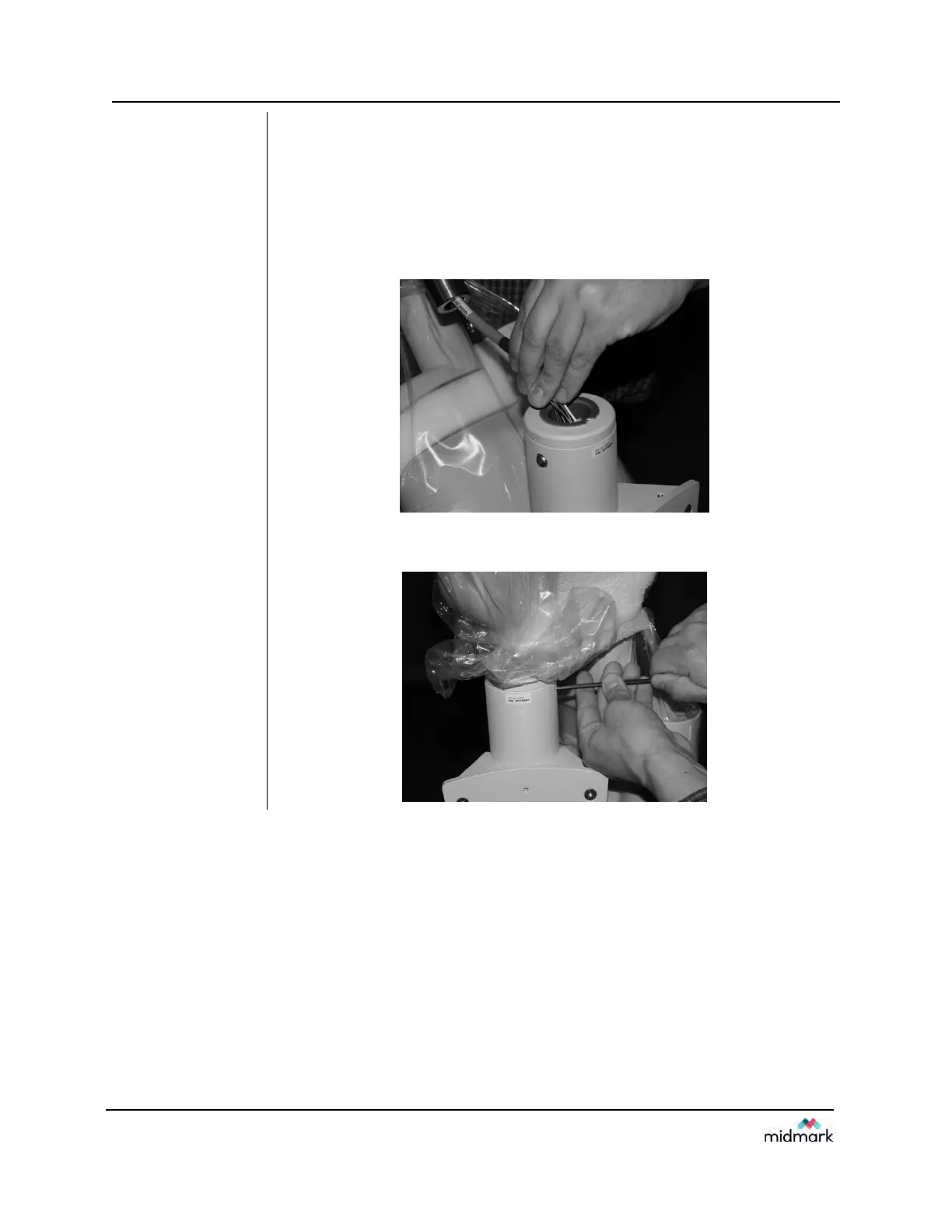

10. Locate the Articulated Arm/Tubehead assembly. Remove the red
transportation label. Pull back the plastic packaging to expose shaft and
remove paper tube protecting cables and connectors.
FIGURE 123
11. Lift the arm/tubehead carefully and guide the cables through the top of
the post. Carefully insert the articulated arm and take care not to pinch
or damage the connectors.
FIGURE 124
12. Secure the articulated arm assembly to the post with the two Allen bolts
that were backed out in step 9.
