Midmark Preva - Diagnostic Mode and Calibration

System Configuration
Preva
66
Recall Presets
1. To return all presets to factory defaults, select RECALL PRESETS from
the Preset Options menu. The menu will ask you to confirm your choice.
2. Select YES using the up arrow button and return all presets to factory
default settings. Selecting YES will erase any custom presets that have
been set up.
3. Select NO using the down arrow button and retain current presets.

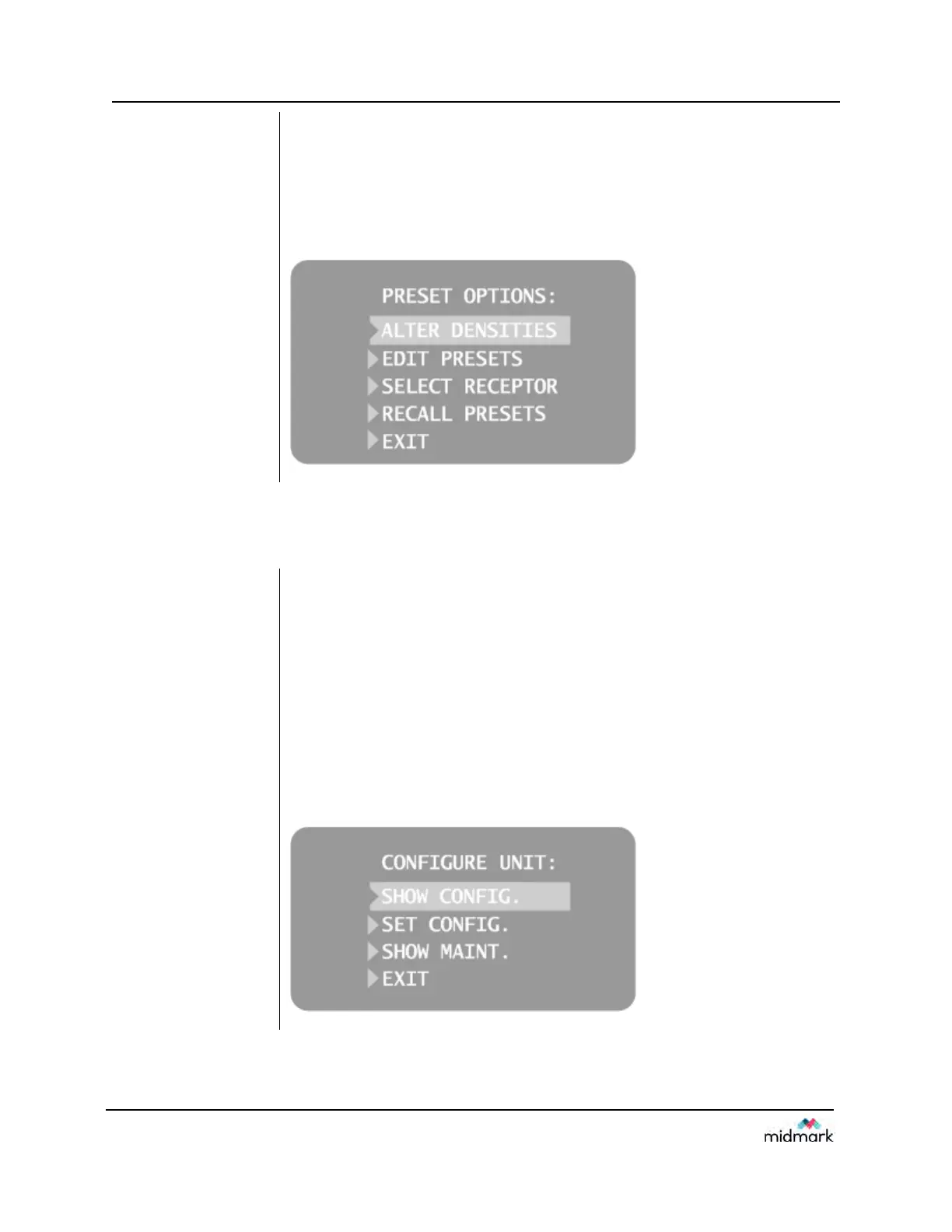

Figure 51
Preset Options
Menu
Showing Current System Configuration
The Preva Dental X-ray System displays the current system configuration.
This display is informational only.
1. From the Main System Configuration menu, Figure 49, select
CONFIGURE UNIT. You will see the Configuration menu shown in Figure
52.
2. Select SHOW CONFIG. The display will show:
 Current software version
 Cone size
 Diagnostic mode on or off
3. Press any button on the Operator Panel to return to the Configuration
menu.
Figure 52
Configuration Menu
