Midtronics DSS-5000 Quick Start Guide

DSS-5000 Subaru
Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527
www.midtronics.com
Page 3
Quick Start Guide
167-000839EN-A
October 2017

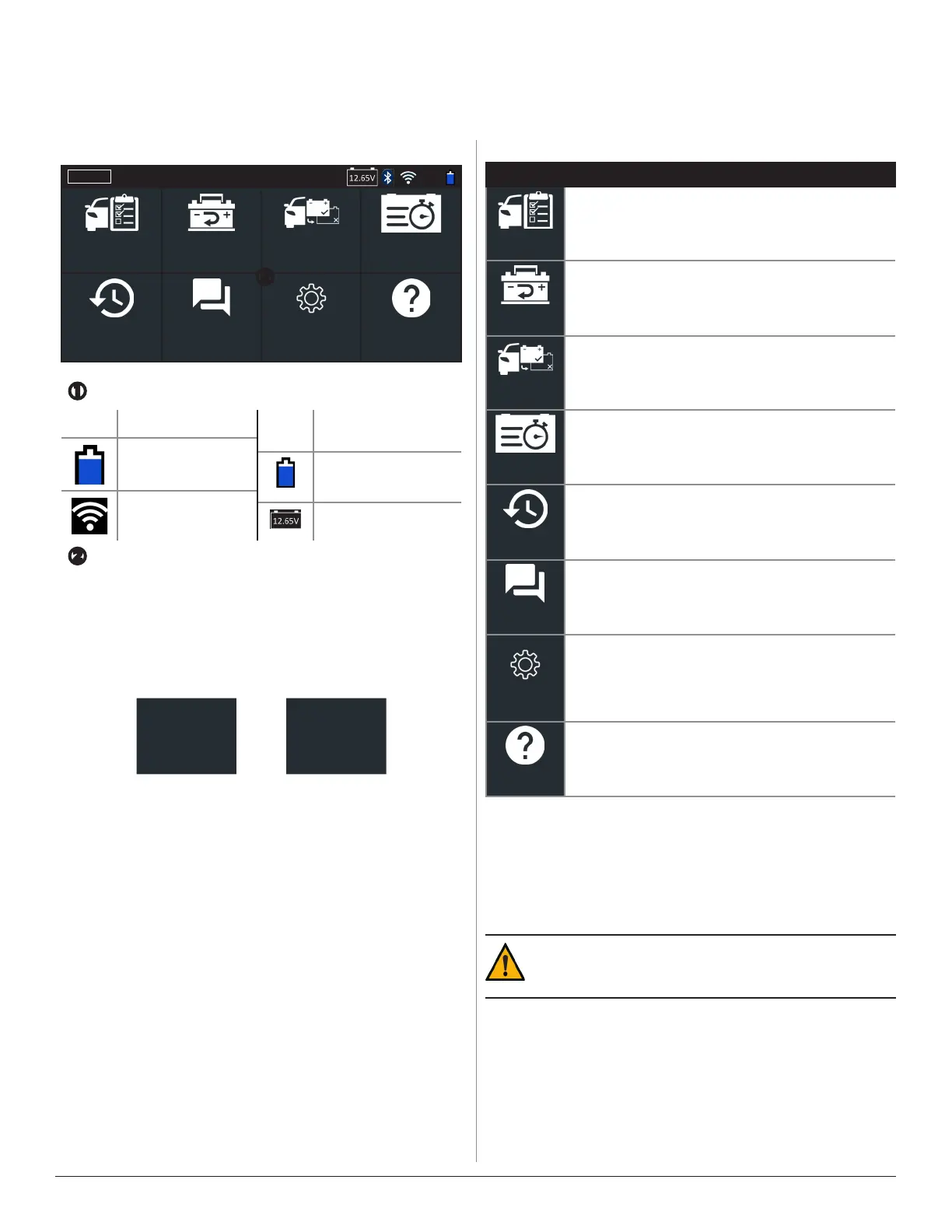

Main Menu
Log Out DSS-5000
93%
System Test Baery Test Aer New
Baery Install
Express Test
History
Messages
Sengs Support


 Menu Bar
Log Out
Log out current user
93%
Controller internal
battery level
Bluetooth
connectivity status
Controller internal
battery status
WiFi signal strength
Connected battery
voltage
 Main Menu Selection Area
Additional Screens
The dots at the bottom or side of a menu or results screen
indicate additional screens are available. Use your nger to
swipe horizontally left, right, up or down across the Controller
screen to view all of the results.
 Screen 1
 Screen 2
 Screen 3


Screen 1


Screen 2
Swipe
Horizontally
Swipe
Vertically
Main Menu Icons
Icon Description
In Vehicle Test
Automates battery testing for quickly testing
vehicles using the fewest steps. A VIN is required
and a Warranty Code is generated for all Replace
Battery decisions.
Out of Vehicle
Test
For testing out-of-vehicle customer batteries for
possible return.
Aer New
Baery Install
For testing newly installed batteries in a vehicle.
Also includes vehicle electronics reset information
after battery installation.
Express Test
For quickly testing batteries in vehicles in for
servicing.A VIN is optional and a Warranty Code is
generated for all Replace Battery decisions.
History
Access archived test histories or search test history
by VIN or by technician.
Messages
Displays alerts and notications for upcoming
tests and activities including scheduled tests, tool
software updates and maintenance opportunities.
Sengs
Setup/adjust: WiFi, printer setup, email settings,
user information, default language, display and
sound settings, BMIS information, shop information,
and connected devices. Also access to tester
software version information.
Support
Access the analyzer Self-Test and a digitized
version of the Instruction Manual.
Recommended Test Procedure
The DSS-5000 testing process uses Conductance Proling™
technology which determines battery cranking capability and
also adds Reserve Capacity testing. With this additional process,
initial battery analysis can take up to 60 seconds to complete.
IMPORTANT: Always begin each test by connecting the
Tester Pod clamps to the battery being tested . The test-
ing process begins as soon as the clamps are connected.
The DSS-5000 provides a battery decision along with additional
detailed information on battery cranking and reserve capacity.
Swipe the screen horizontally to the right or left to view the
additional results screens.
