a Spring clamps
b Spacer bars
c Gap between spacer bar and worktop
d Sealing strip

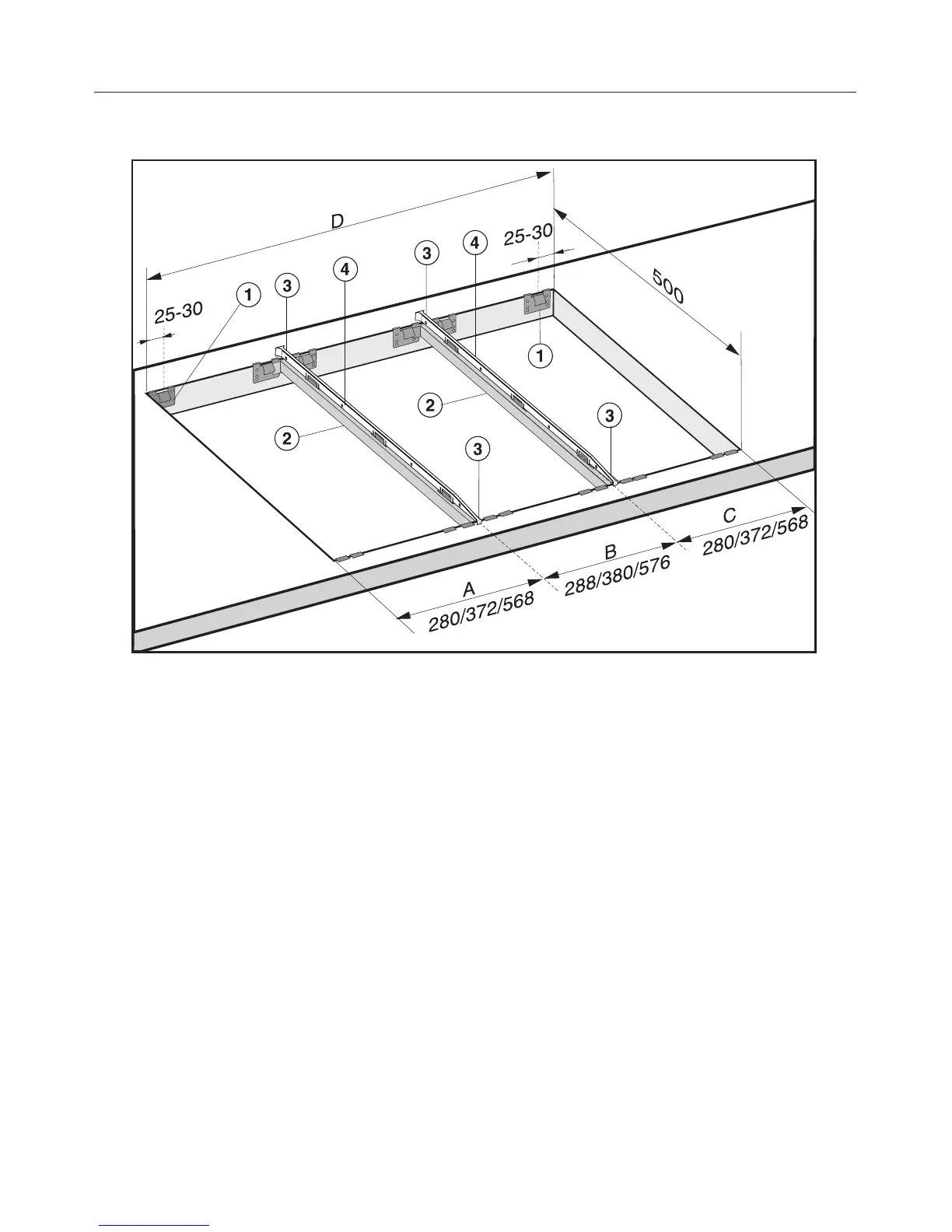

The illustration shows a worktop cut-out with spring clamps a and spacer bars b
for 3 appliances.
An additional spacer bar is required for each additional appliance. The position
for securing each additional spacer bar will depend on the width of appliance B
(288 mm / 380 mm / 576 mm).
Installation of several appliances
44
