50
Installation with a downdraft
extractor
Please refer to the separate “Downdraft
extractor with CombiSet” instruction
manual for details about installing a
downdraft extractor with a CombiSet
appliance.
Fitting the ProLine element
Feed the mains connection cable
down through the cut-out.
Starting at the front, position the Pro-
Line appliance in the worktop cut-
out.
Using both hands, press down evenly
on the sides of the ProLine element
until it clicks into position. When do-
ing this make sure that the seal of the
appliance sits flush with the worktop
on all sides. This is important to en-
sure an effective seal all round.
Do not use any additional sealant
(e.g. silicone) on the ProLine ele-
ment.
If the seal does not meet the worktop
correctly on the corners, the corner ra-
dius (≤R4) can be carefully scribed to
suit.
Installing several ProLine elements
Push the built-in ProLine element to
the side until the holes in the spacer
bar can be seen.

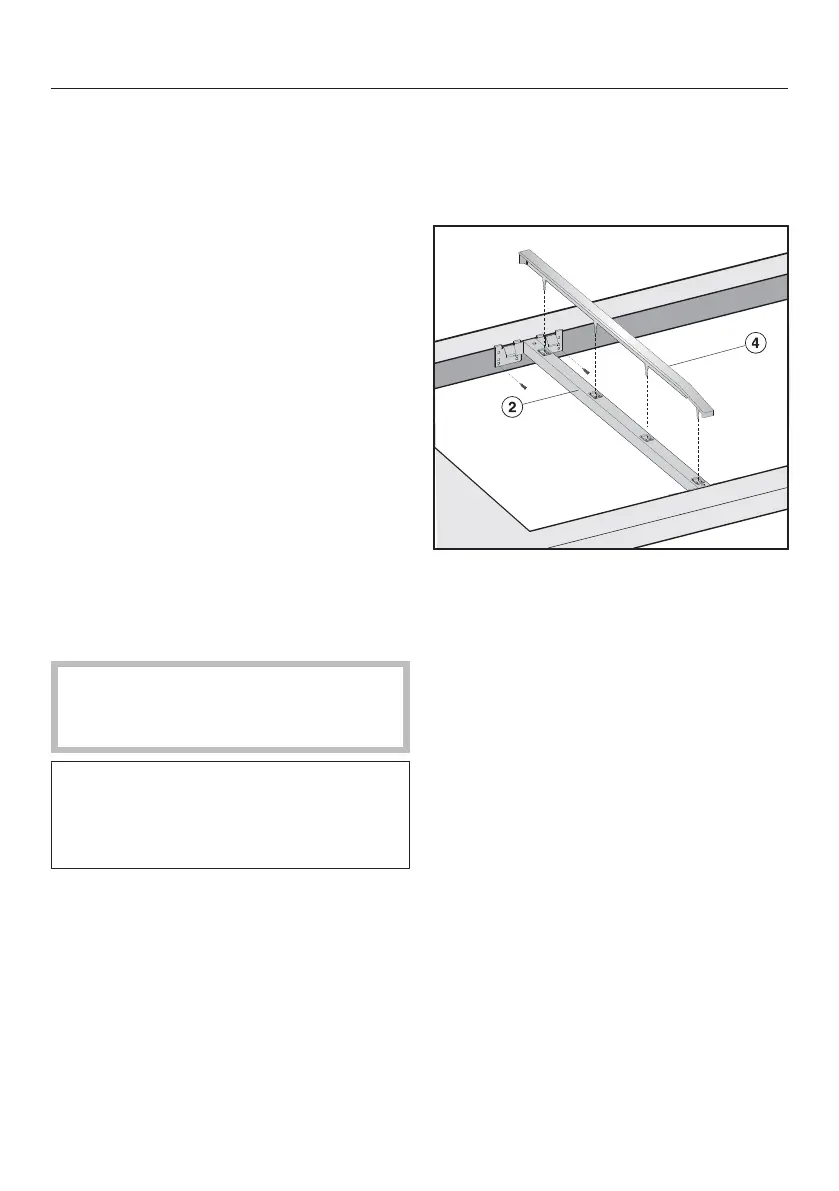

Fit cover strip into the holes in
spacer bar .
Starting at the front, position the next
ProLine element in the worktop cut-
out.
Proceed as described previously.
