Building-in several CombiSets
27

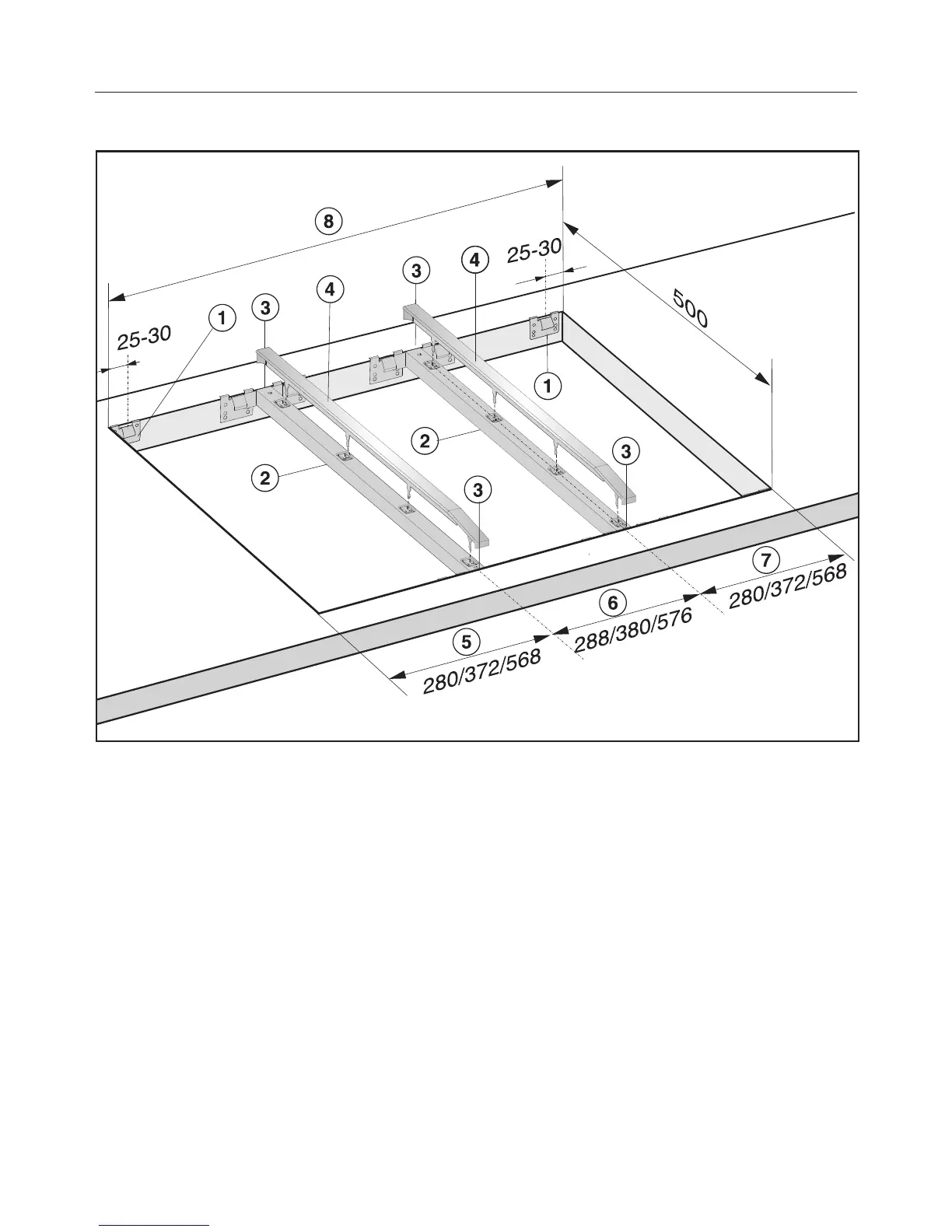

Example: 3 CombiSets
a
Spring clamps
b
Spacer bars
c
Gaps between spacer bars and worktop
d
Cover strips
e
CombiSet width minus 8 mm
f
CombiSet width
g
CombiSet width minus 8 mm
h
Worktop cut-out
