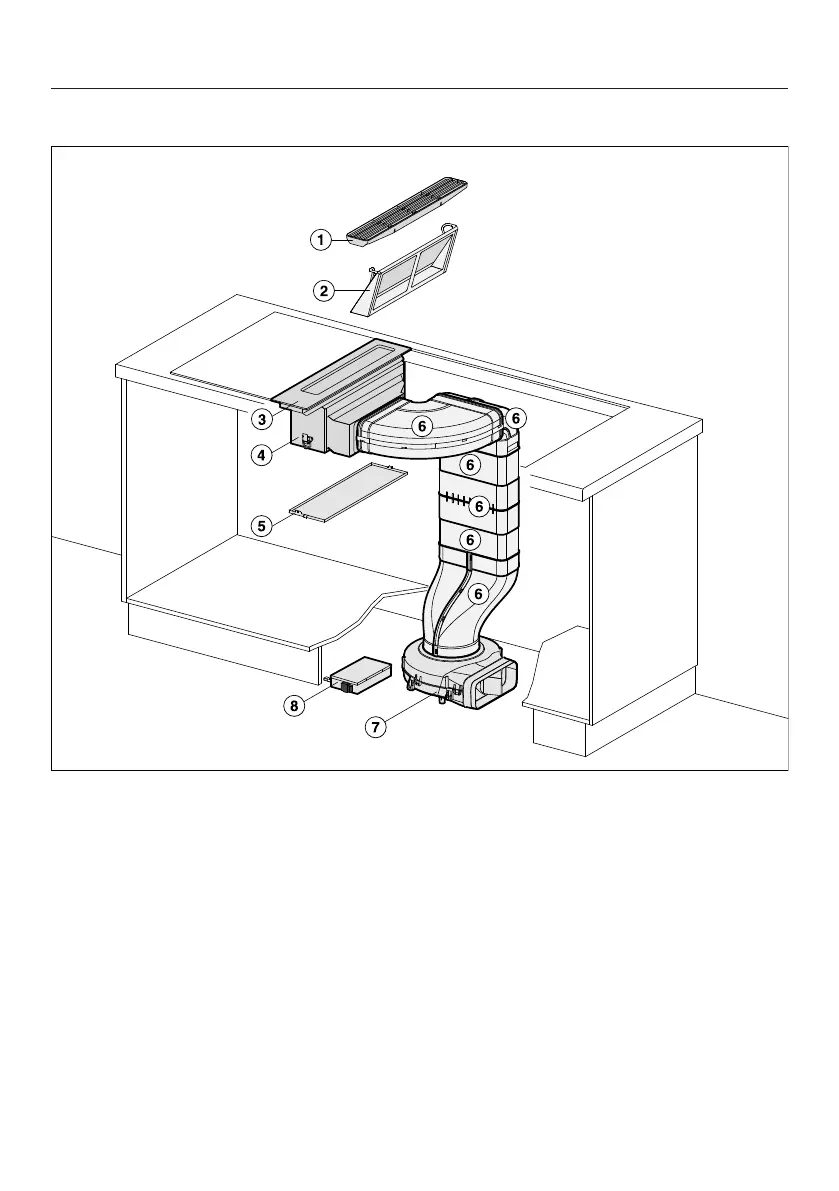

Overview
15
Downdraft extractor
a
Extraction grille
b
Grease filter
c
Cover with control unit
d
Casing
e
Removable drip tray
f
Air duct
(accessory supplied)
g
Fan
In the plinth on the floor
h
E-box
