Miele CSDA 7001 FL - Installation Dimensions - Flush-Fit

Installation
*INSTALLATION*
59

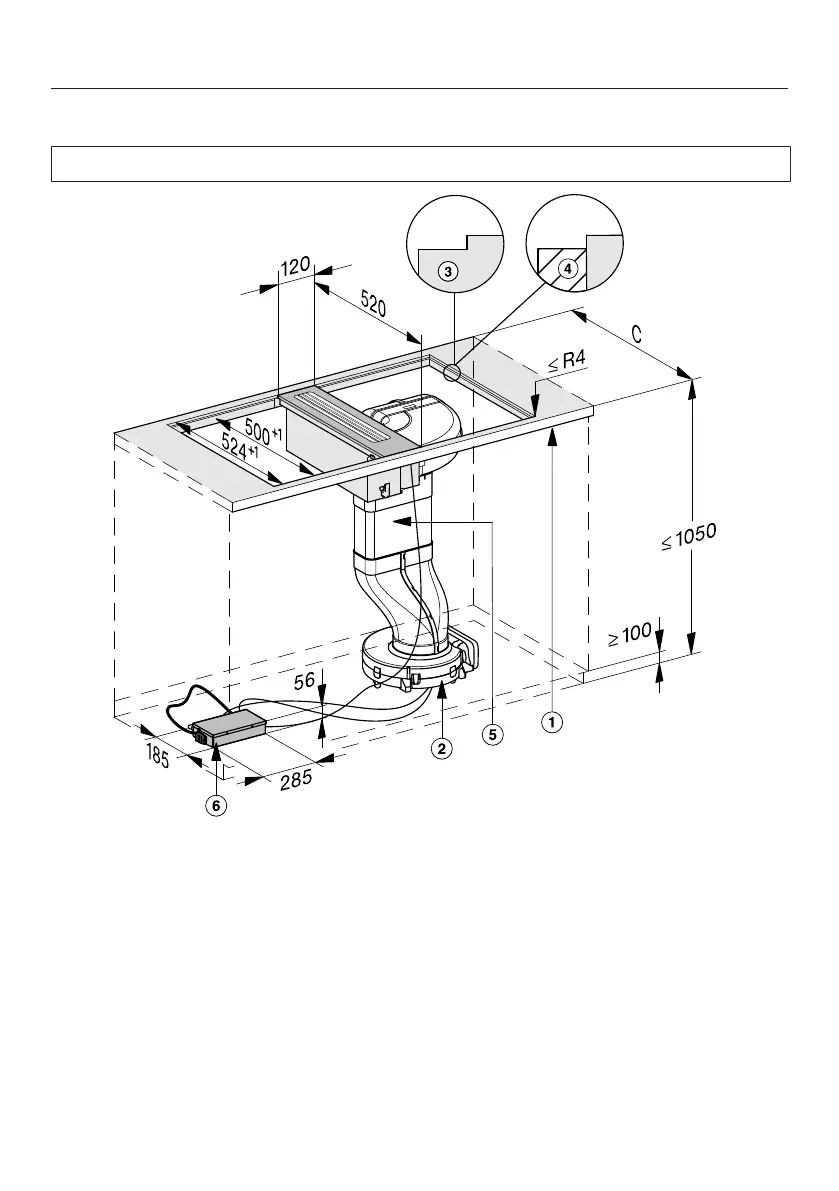

Installation dimensions–Flush-fit
All dimensions in this instruction booklet are given in mm.
a
Front
b
Fan
In the plinth on the floor
c
Stepped cut-out (for detailed illustrations, see “Installation – Worktop cut-out –
flush-fit”)
d
12mm wooden frame (not supplied, for detailed illustrations, see “Installation –
Worktop cut-out – flush-fit”)
e
Air duct
(accessory supplied)
f
E-box
