Installation
25
a
1 Vent collar
for an exhaust duct6" (150mm)
or 5" (125mm) (not to be used
with recirculation mode).
b
1 Non-return flap
for fitting into the exhaust socket
(not to be used with recirculation
mode).
c
2 Brackets
for securing the hood to the wall (not
required when installed underneath
the wall unit).
d
1 Drilling template
e
1 Protective foil
for rear exhaust opening when using
recirculation mode. The foil is
included with the OdorFree Charcoal
filter (optional accessories).

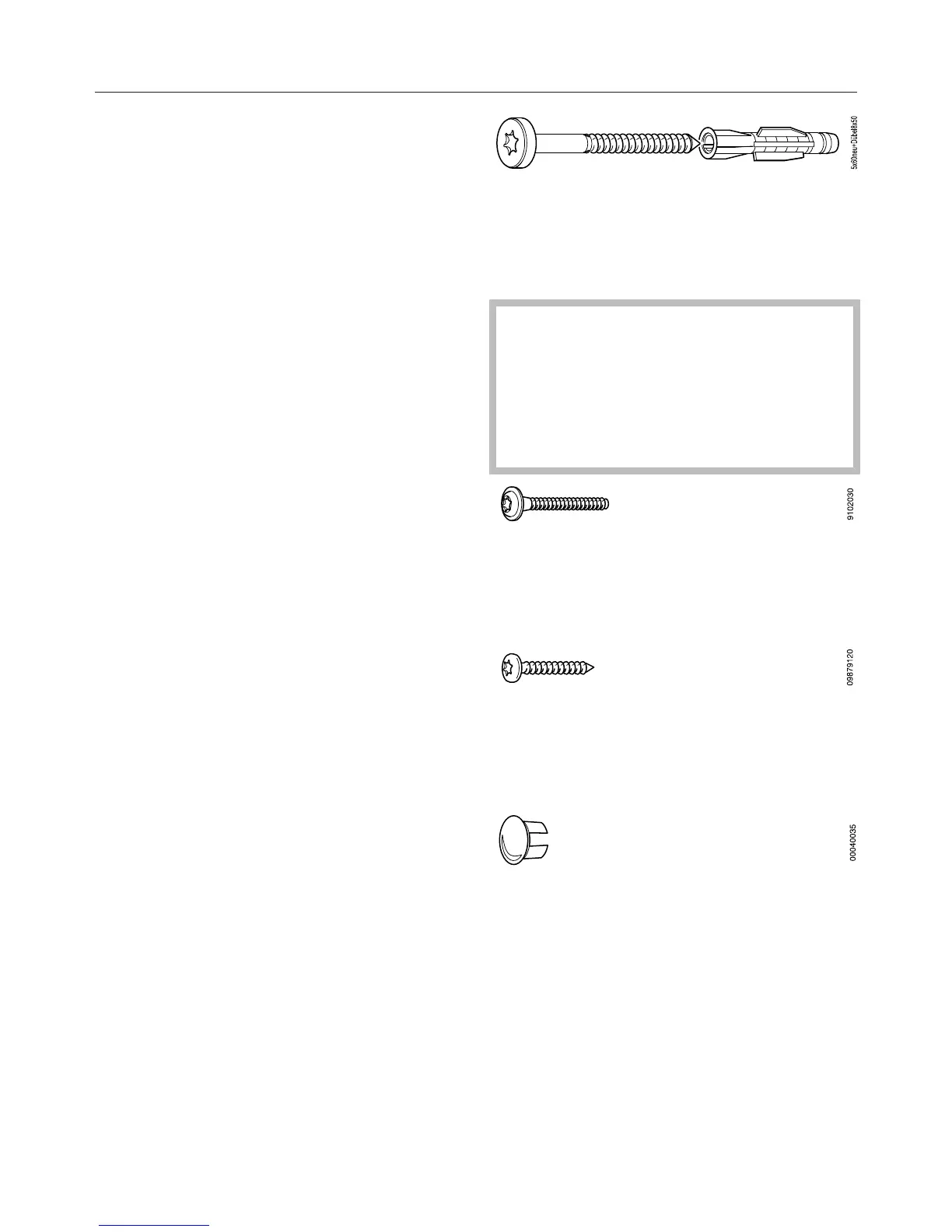

4 Screws, ³/₁₆"x2³/₈" (5x60mm)
and
4 Wall anchors, ⁵/₁₆"x2" (8x50mm)
for attaching to the wall.
The screws and wall anchors are
designed for use in solid walls only.
Use different fasteners for other wall
construction types.
Make sure that the wall can support
the load.
4 Self-tapping screws
³/₁₆"x1³/₁₆" (4.2x30mm)
for securing the ventilation hood onto
the wall unit (from the top).
4 Wood screws
³/₁₆"x1³/₁₆" (4x30mm)
for securing the ventilation hood onto
the wall unit (from below).
4Cover caps
