Miele DA 1260 User Manual

Air venting
38

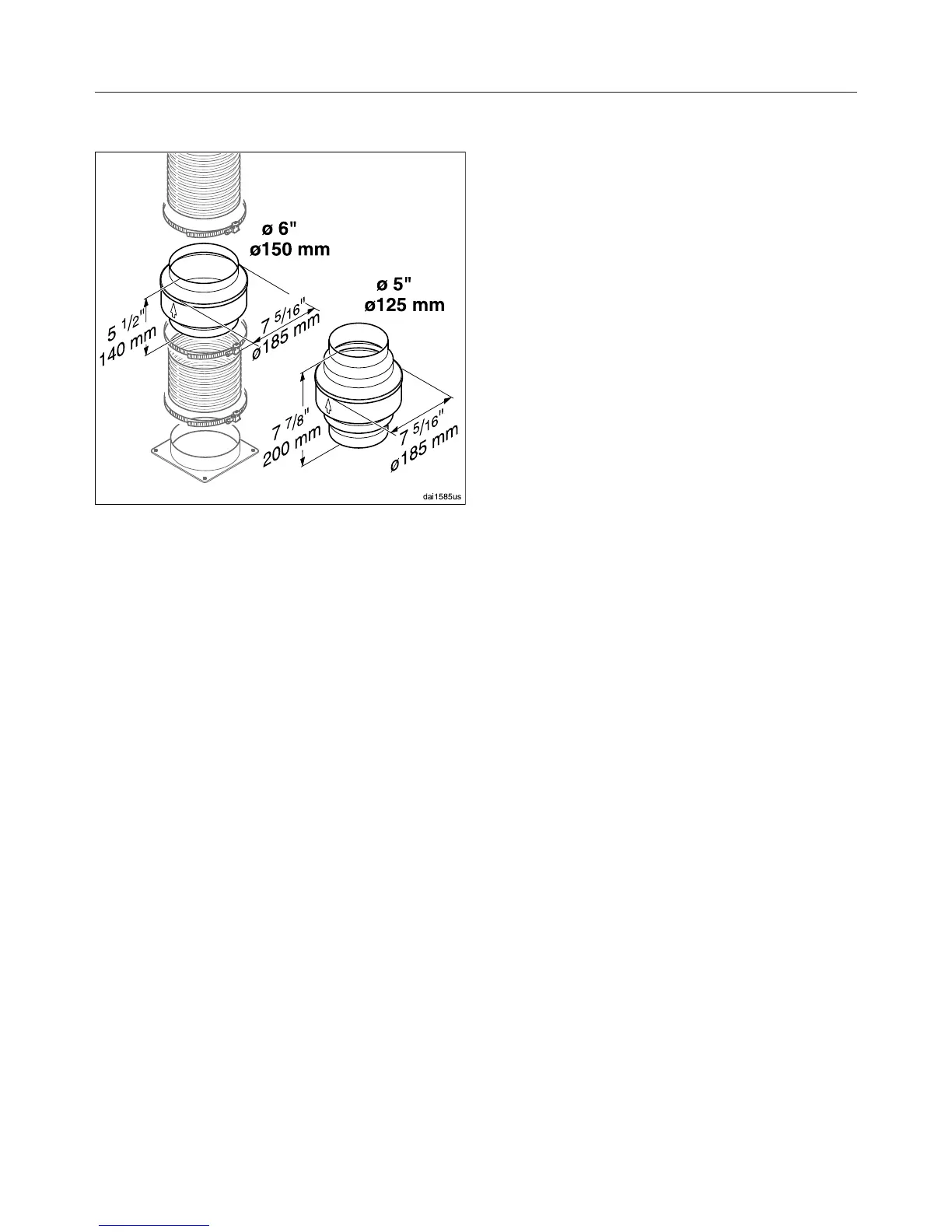

Condensate trap
In addition to insulating the exhaust
duct, we recommend installing a
condensate trap to collect and
evaporate any condensate which might
accumulate.
Condensate traps are available for
exhaust ducts with a diameter of
5" (125 mm) or 6" (150 mm).
 When installing a condensate trap,
make sure that it is positioned
vertically and, if possible, directly
above the hood outlet duct collar.
The arrow on the housing indicates
the direction of airflow.

Miele DA 1260 Specifications

General

Noise level	64 dB
Intensive speed	Yes
Number of speeds	3
Type of extraction	Ducted/Recirculating
Maximum extraction power	545 m³/h
Noise level (boost mode)	74 dB
Lighting efficiency class	A
Minimum distance from gas hob	650 mm
Fluid dynamic efficiency class	D
Minimum distance from electric hob	450 mm
Type	Built-under
Cord length	1.5 m
Product color	Brown
Built-in display	No
Current	10 A
Motor power	- W
Connected load	240 W
AC input voltage	230 V
AC input frequency	50 Hz
Annual energy consumption	91.6 kWh
Bulb type	LED
Bulb power	3 W
Illuminance	330 lx
Number of bulbs	2 bulb(s)
Number of filters	2 pc(s)
Grease filter type	Stainless steel

Weight and Dimensions

Depth	500 mm
Width	598 mm
Height	125 mm
Weight	11200 g
