Installation
34

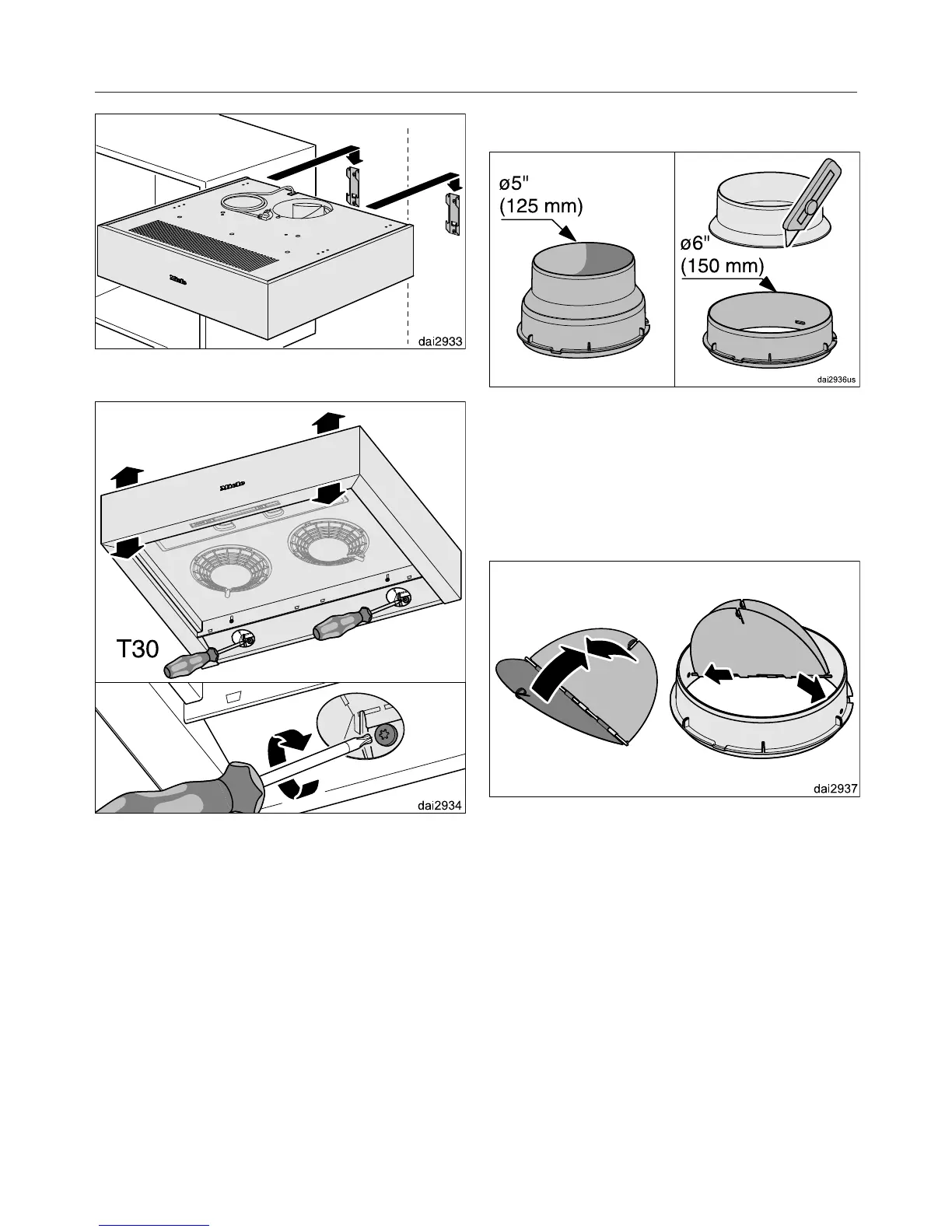

Insert the hood.
Tighten both screws on the left- and
right-hand side at the back of the
hood. This adjusts the alignment of
the hood to prevent it being lifted off
the brackets.
Install the lamp again.
Reinsert the grease filters.
Preparation for vented mode
When using 6" (150mm) exhaust
ducting, use a sharp knife to cut the
exhaust socket to size with.
When using5" (125mm) exhaust
ducting, install the exhaust socket as
is.
Insert the non-return flap, if required.
Make sure the flap opens easily and
closes again by itself.
