In further description only one ceil-
ing plate is shown.

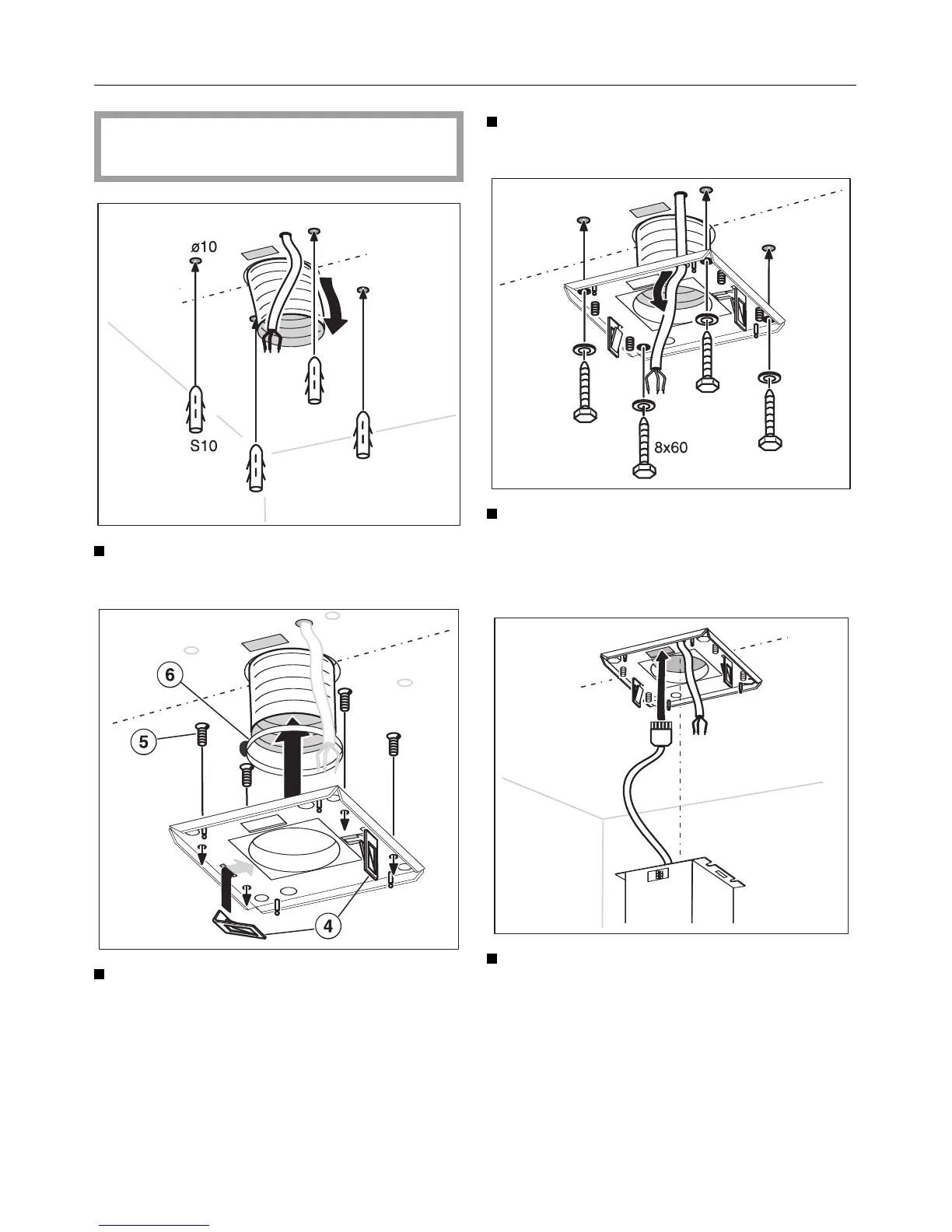

Drill 10 mm Ø holes in the ceiling,
and insert S10 plugs into the holes.
Prepare the ceiling plate for fitting.
Push up the smooth angle of the
spring clips
e through the slots from
below and tilt 90° so that the angle
points towards the middle.
Insert the four countersunk screws
f (M 6 x 20) into the recessed holes
from above.
Use the hose clip to secure the ex-
haust hose to the ceiling plate.
Pull the mains connection cable
through the ceiling plate. Screw the
ceiling plate to the ceiling with the
8 x 60 mm screws and washers.
With the EXT version the connection
cable to the external fan must now
be pulled through the appropriate
gap. Use the cable extension pro-
vided if the position of the external
fan makes it necessary. Make the
connection between the cooker
hood and the external fan with the 6-
pole connector.
Installation
22
