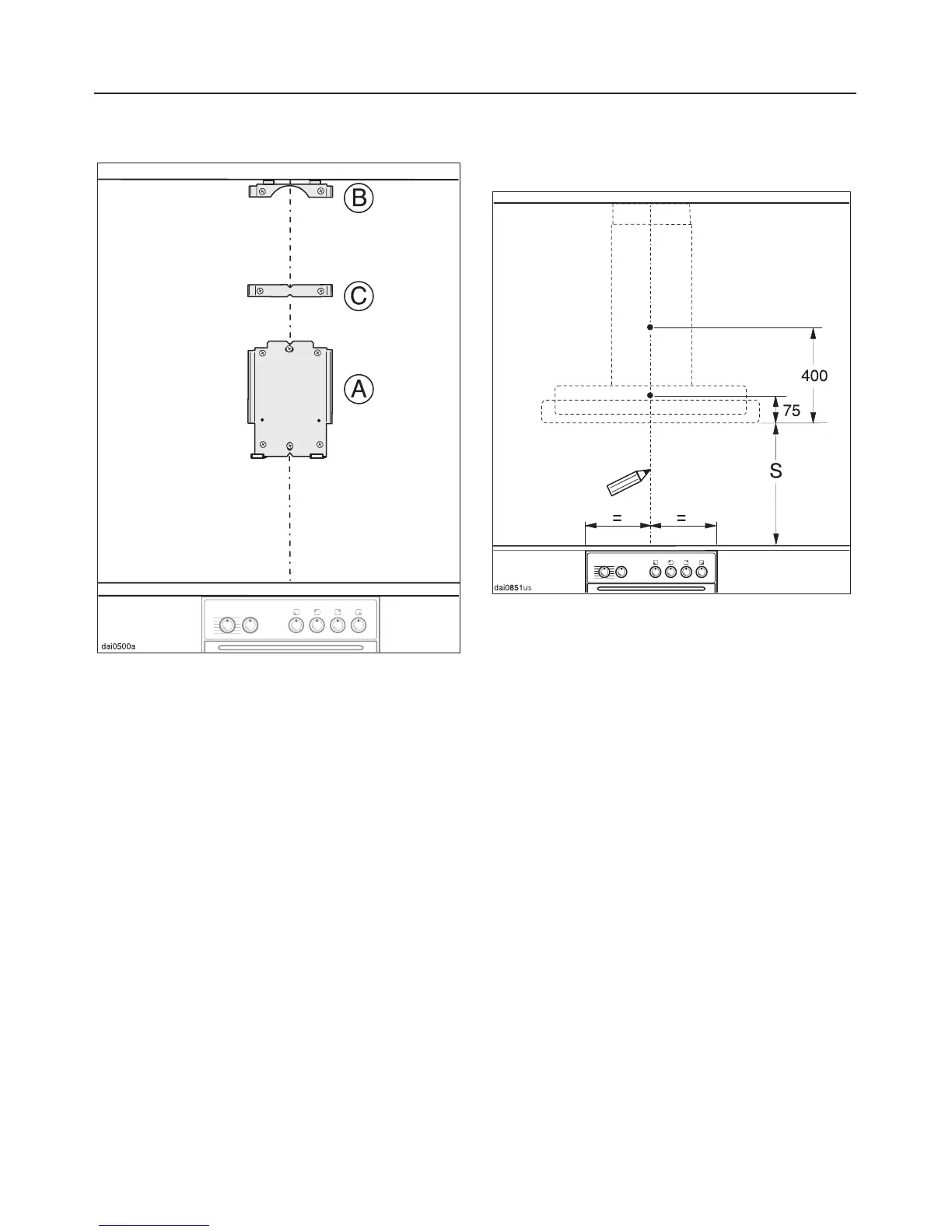

Retaining plates
The ventilation system will be mounted to
the wall through the use of retaining
plates. Plate A is installed first, followed
by plate B. Plate C should ony be used if
the distance between plate A and plate B
is greater than 14
3
/
8
" (365 mm).
Attaching the retaining plates
to the wall
^ Before fitting the retaining plate draw
a vertical line centrally above the
cooktop on the rear wall.
^ Mark measurement S from the
cooktop surface upwards (see "Appli
-
ance dimensions"). This marks the
height of the lower rim of the hood.
Installation
28
