Electrical connection
Before connecting the appliance
read the "Warning and Safety In
-
structions" and the "Electrical data"
sections.

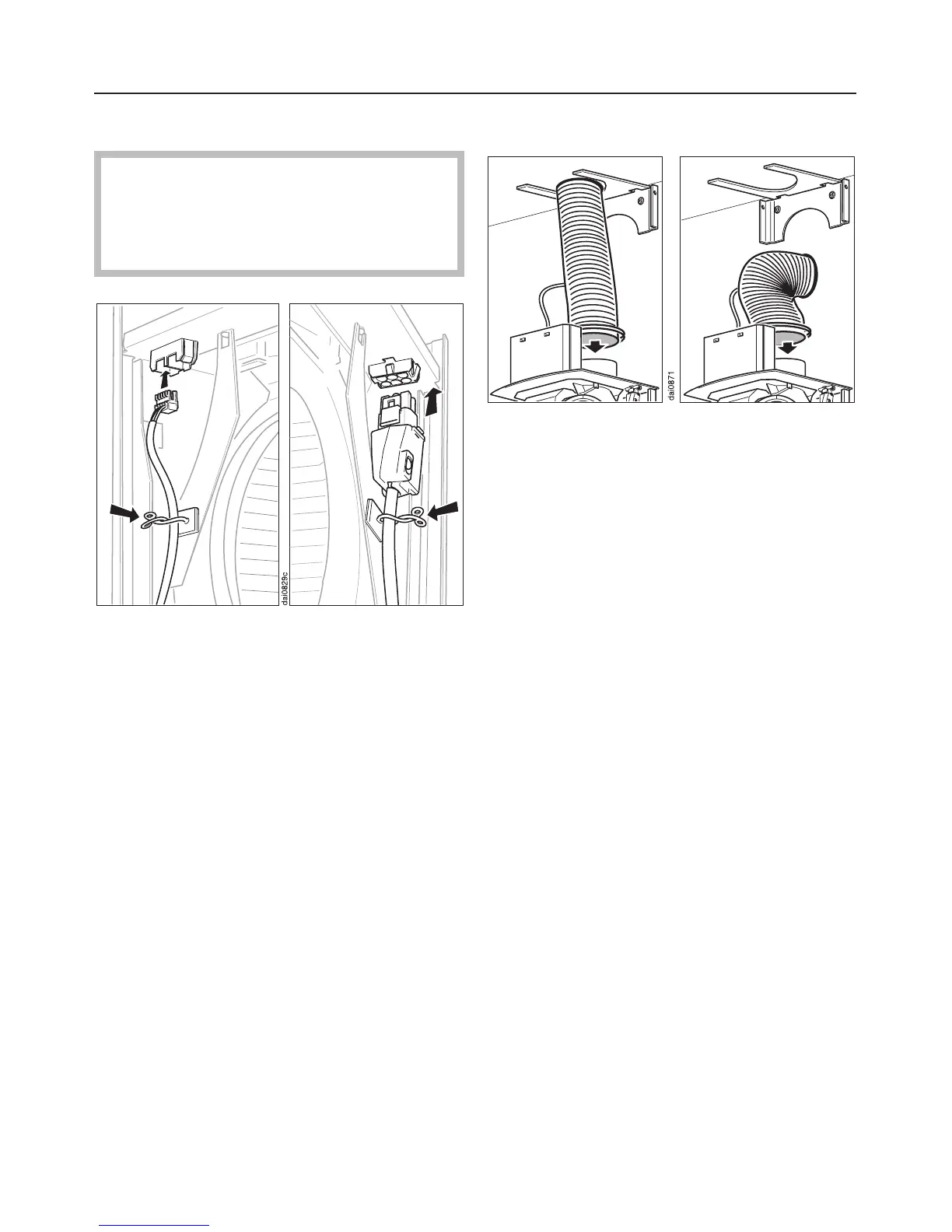

^ Plug the connectors on the canopy
into the corresponding receptacles
left and right of the motor assembly.
Insert the 4 prong connector into the
receptacle left of the motor assem
-
bly.
Insert the 6 prong connector into the
receptacle right of the motor assem
-
bly.
^
Secure the cords with the ties, as
shown above.
^
Plug in the power cord.
Exhaust connection
^
Conect the ductwork to the exhaust
connection using whatever means
are appropriate for the type of
ductwork being installed (hose
clamp, duct tape, etc.).
^ Direct the duct through the back wall
or ceiling.
See "Air extraction" for further details.
Installation
33
