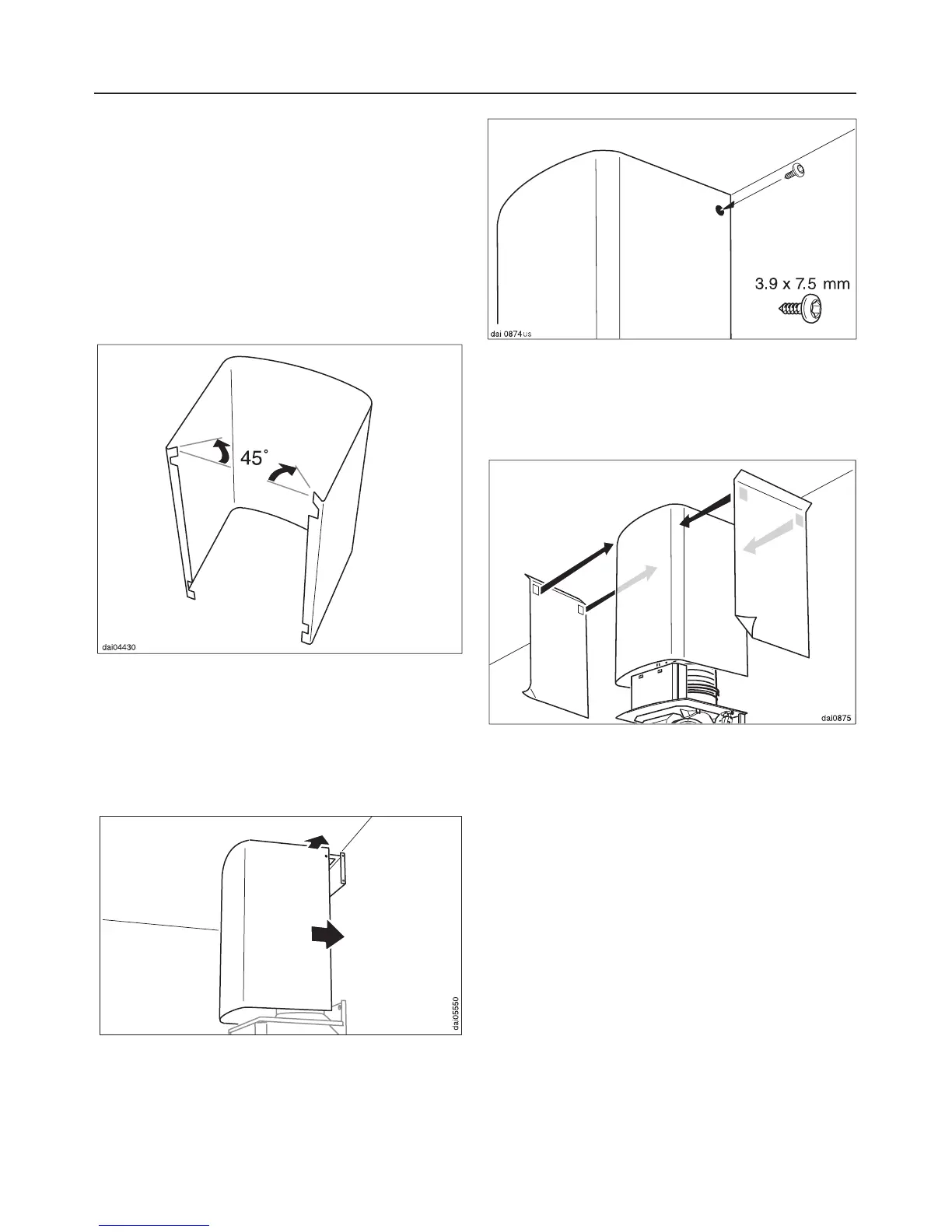

Attaching the chimney
extension
The use of a chimney extension, allows
the hood to be installed at various dis
-
tances from the ceiling.
^
Remove the protective foil from the
chimney extension.
^ Bend the top hanging tabs 45° in-
wards. This will make installing the
chimney extension easier. Be careful
of sharp edges.
^
Pull the chimney extension slightly
outwards and snap over the upper
retaining plate B.
^
Secure the chimney extension to the
upper retaining plate with two
3.9 x 7.5 mm screws.
^
Fold the protective shield at the top.
^
Remove the adhesive backing from
the shield.
^
Stick the shield to the chimney exten
-
sion so that it is smooth and flush
with the bottom.
