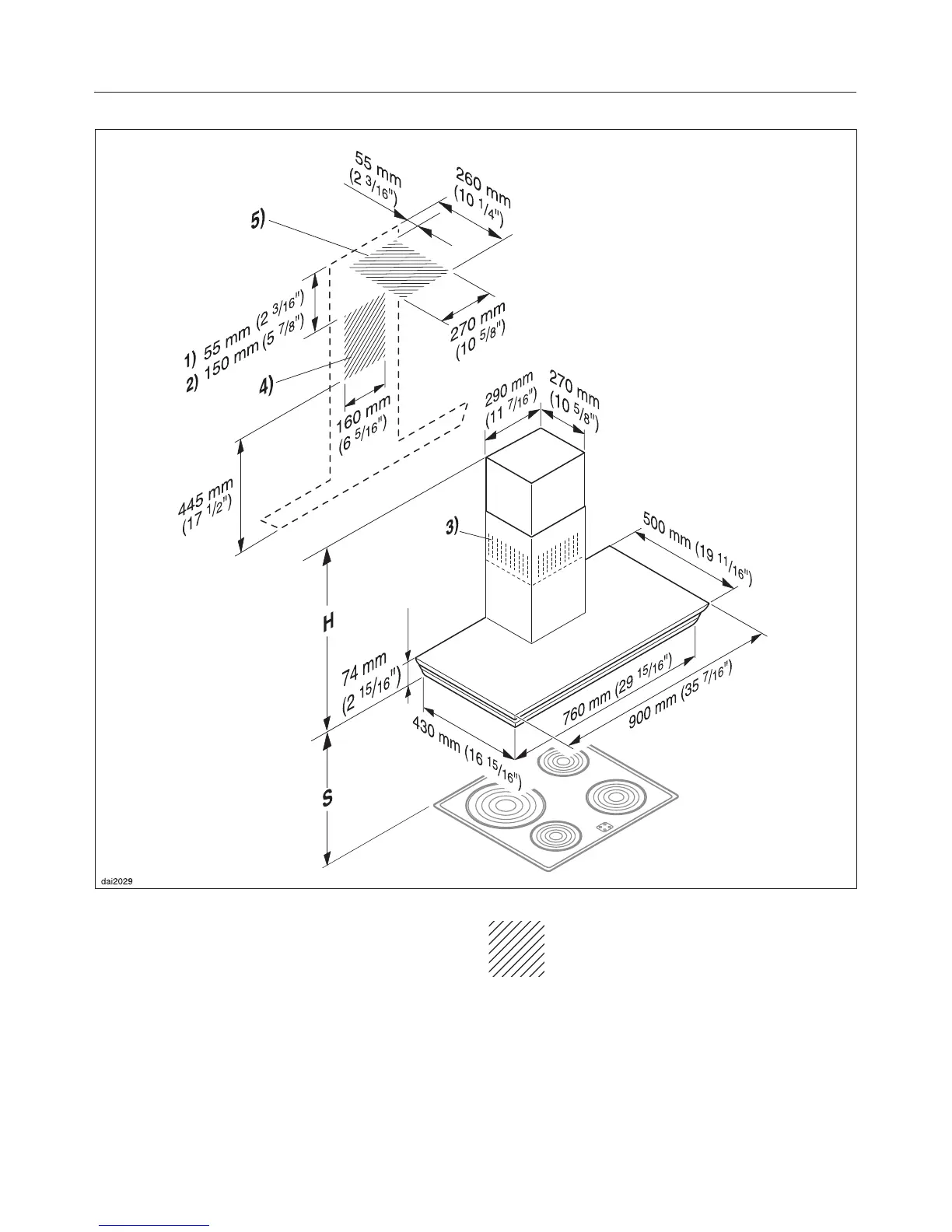

1) Air extraction mode
2) Recirculation mode
3) Air extraction vent installed upwards
4) and 5) Cut out area in wall or
ceiling for entrance of 6"
(150 mm) ductwork or 5"
(125 mm) ductwork with a reducing
collar.
For recirculation mode only 4)
and outlet installation are needed.
Appliance dimensions
26
