a 3 protective shields
to prevent scratches to the chimney
during installation.
b 2 hose clips for securing the
ducting.
c 1 reducing collar
for use with 5" (125 mm) exhaust
ducting.
d Telescopic retaining plate
secures the chimney extension.
e Installation kit for recirculation
mode; contains diverter and hose
(optional accessory)
,
CAUTION
To avoid risk of hand or other injury,
avoid contact with sharp edges
during the assembly and installation
process.

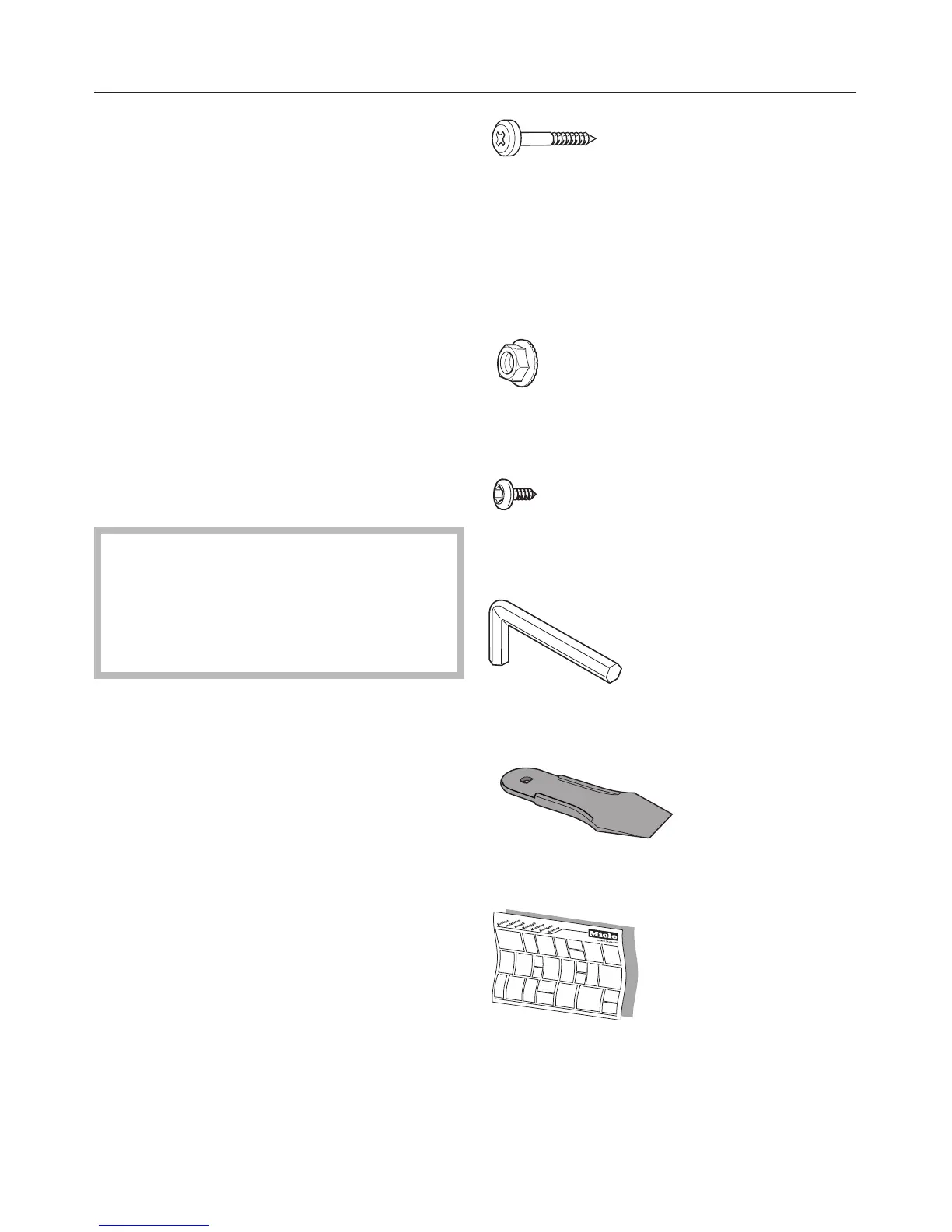

8 large headed screws5x40mm
for securing the retaining plates and the
canopy.
(S8 wall anchors included in the
packaging are not for use in USA / CDN.)
2 M 6 locking nuts for securing the
motor assembly.
2 screws 3.9 x 7.5 mm for securing the
chimney.
1 allen wrench
for adjusting the unit height
1 lever for dismantling the chimney
Installation diagram
Installation
31
