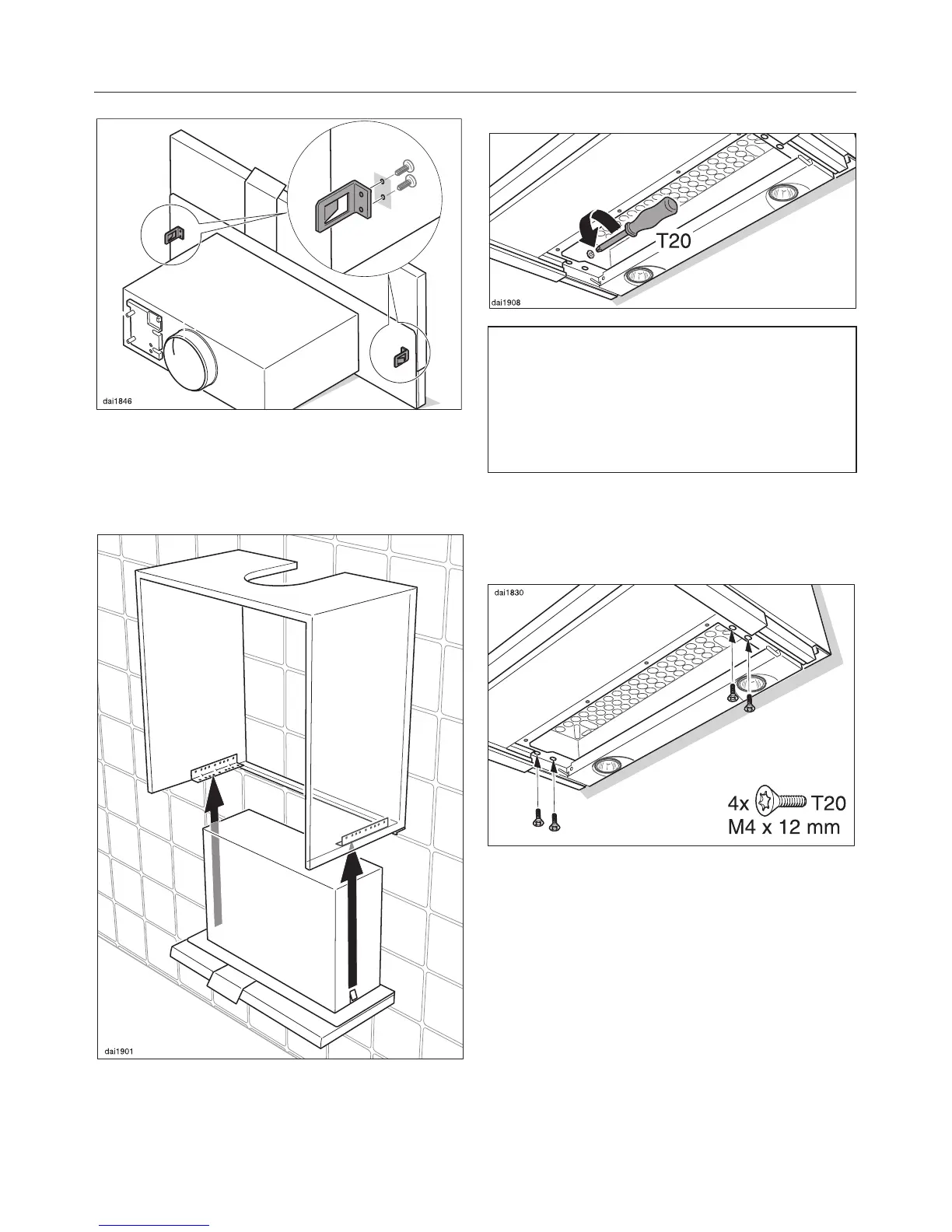

When fitting a DA 3190 into a 60 cm
housing unit, unscrew the brackets
on the deflector plate whilst it is
pulled out.
^
Lift the appliance up into the housing
from below, and engage in the
brackets.
Note for dismantling the rangehood:
Undoing the screws on the left and
right inside the housing releases the
brackets, allowing the appliance to
be removed from the unit.
^ Push the rangehood back against the
spacer strip.
^ Pull out the deflector plate.
^
Secure the appliance to the brackets
using 2 screws on each side.
^
Remove the protective film between
the deflector plate and the casing.
Installation
27
