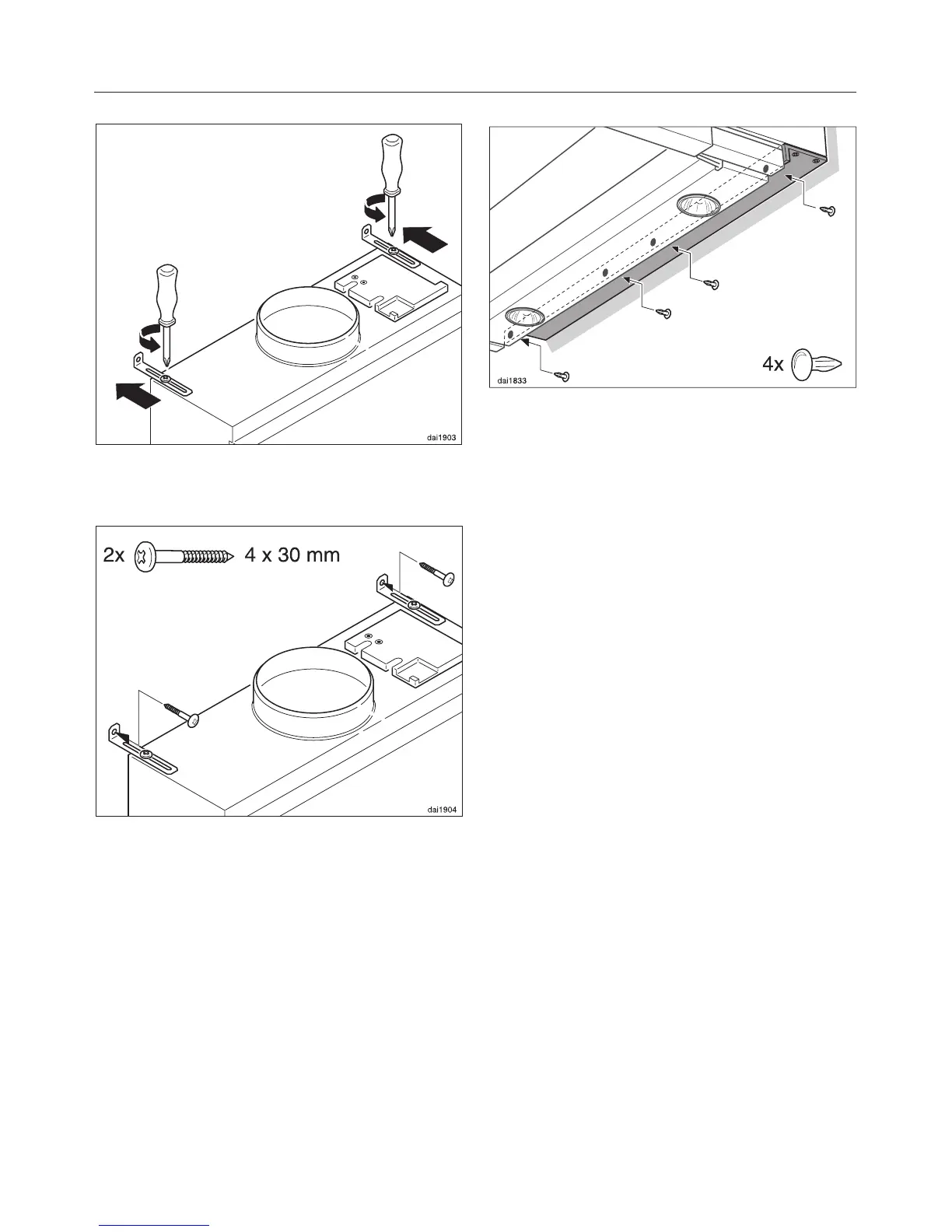

Loosen the screws of the fixing
brackets on the top of the appliance.
^
Push the brackets flush to the wall or
the cabinet back wall.
^
Drill respective holes and screw
the fixing brackets to the wall or the
cabinet rear wall. Tighten the screws
to the casing.
^
Secure the spacer strip to the back of
the appliance from behind using
4 plastic rivets as shown.
Installation
28
