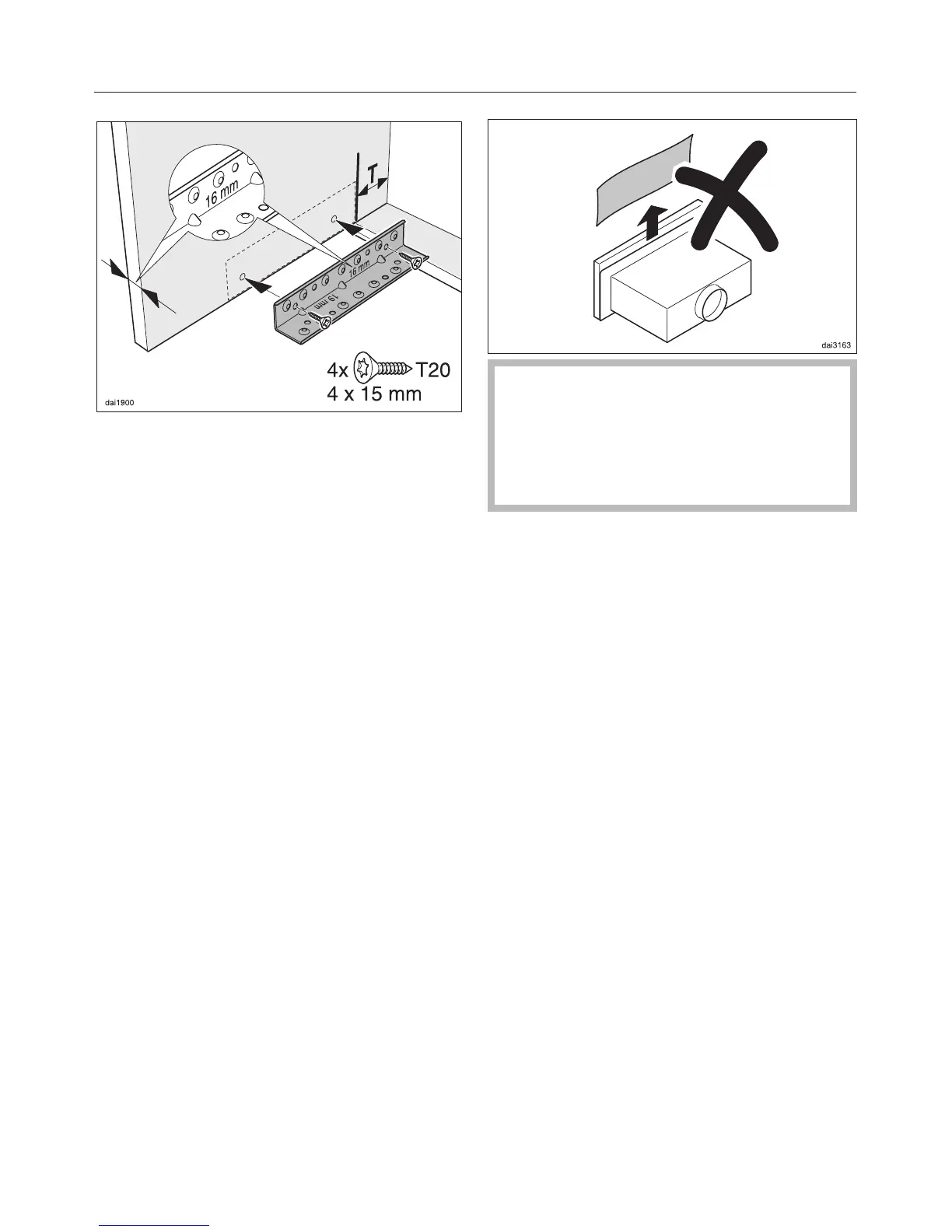

Screw the brackets onto the right and
left inside walls of the housing unit as
shown. The back edge of the
brackets should align with the vertical
line drawn up from the front of the
spacer strip, and the lower edge
aligned with the lower edge of the
housing unit side wall.
The brackets are designed for
furniture units with a thickness of 16
mm and 19 mm. Orientate the
bracket so that the vertical depth
matches the thickness of the panel,
as shown.
Do not remove the protective film
between the deflector plate and the
appliance housing until the
rangehood has been placed in the
housing unit.
The rangehood should be installed
without the grease filter fitted. If the
grease fitted, remove before installing
the rangehood (see "Cleaning and
care").
Installation
26
