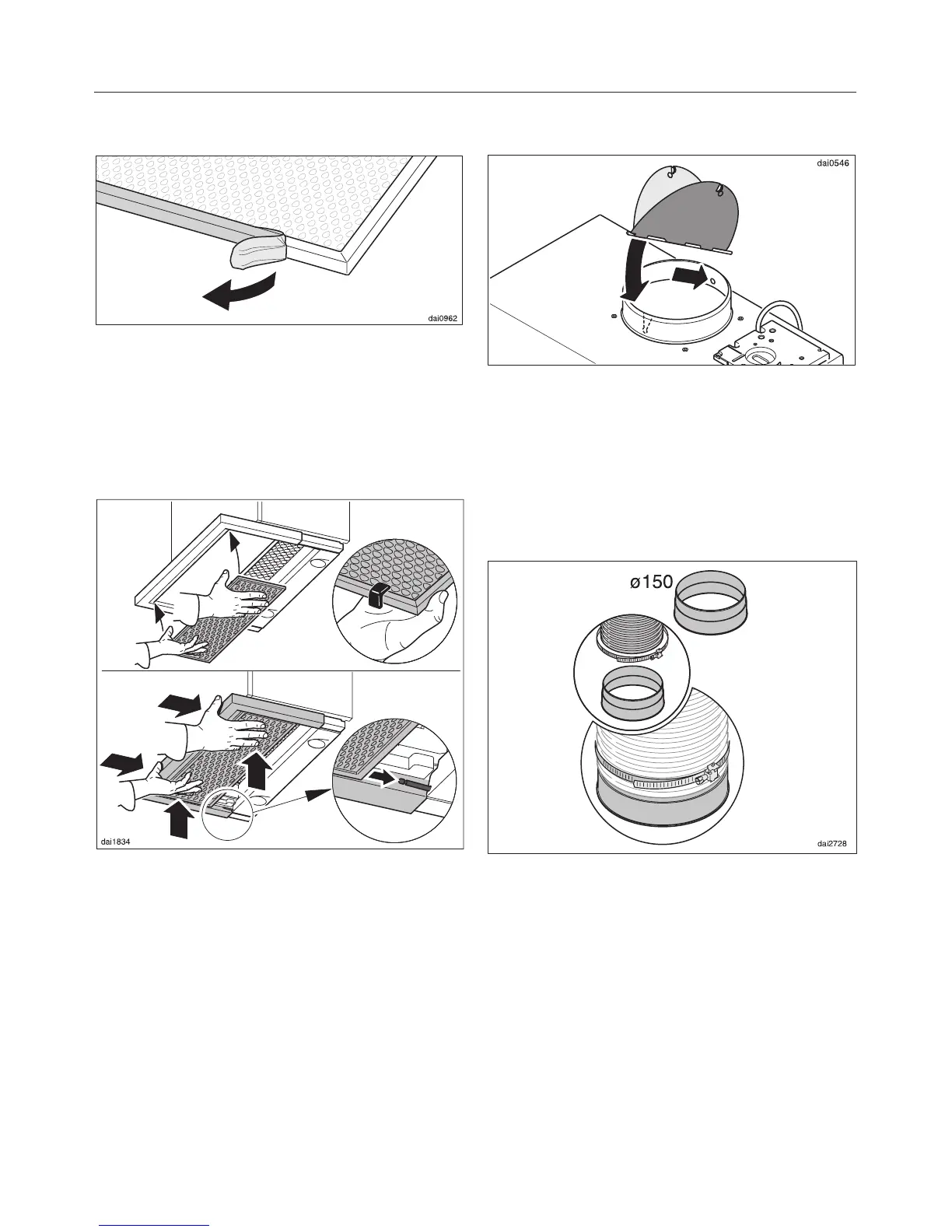

Fitting the grease filter
^
Remove the protective strip around
the edge of the grease filter.
Fit the grease filter.
^
To do this, pull out the deflector
plate.
^
Turn the grease filter so that the red
plastic guides are at the front and
facing upwards.
^
Replace the grease filter in the front
of the deflector plate, press it
upwards and push it in together with
the deflector plate. It will slide onto
the fixing pins at the back. Finally,
push the grease filter back a little
more.
Set up for extraction mode
^
In case the on-site ventilation system
does not have a non-return flap, a
non-return flap is supplied with the
appliance. It must be fitted in the
exhaust socket in the motor unit.
Depending on the model, the
non-return flap may already be fitted.
^
When using C 150 mm ducting,
secure the exhaust connection
supplied to the exhaust ducting with
a hose clip.
Installation
30
