Miele DA 3480 - Installation: Appliance Securing; Fixing Brackets and Hood to Cabinet

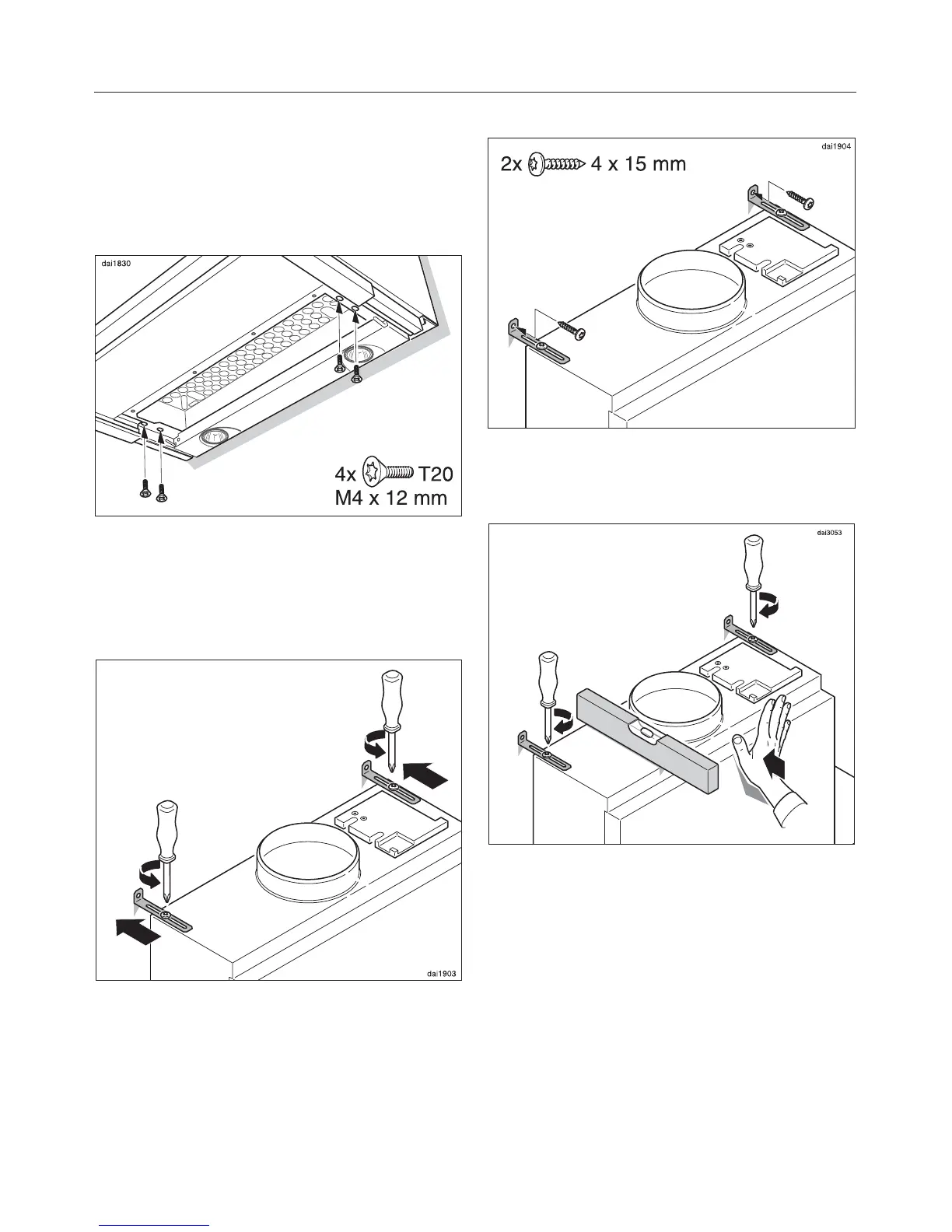

4. Secure the appliance
^
Push the hood back so it sits flush
with the front of the spacer strip.
^
Pull the deflector out.
^ Screw the hood, with 4 screws, onto
the runners.
^ Remove the installation protection
between the deflector and casing.
^
Loosen the screws of the fixing
brackets on the hood top.
^
Push the bracket flush to the wall or
the cabinet back wall.
Fig 1
^
Screw the fixing brackets to the
cabinet rear wall.
Fig 2
^
Align the casing and tighten the
screws.
Installation
30
