Miele DA 3480 - Ventilation System Components Details; Component Identification and Function

a Vent connection
b Control panel
c Grease filter
d Expandable fume deflector
e Overhead cooktop light
f Active charcoal filter
Optional accessory for recirculation
mode
g Facia Panel
Accepts a custom front panel with the
DML 400 kit, optional accessory

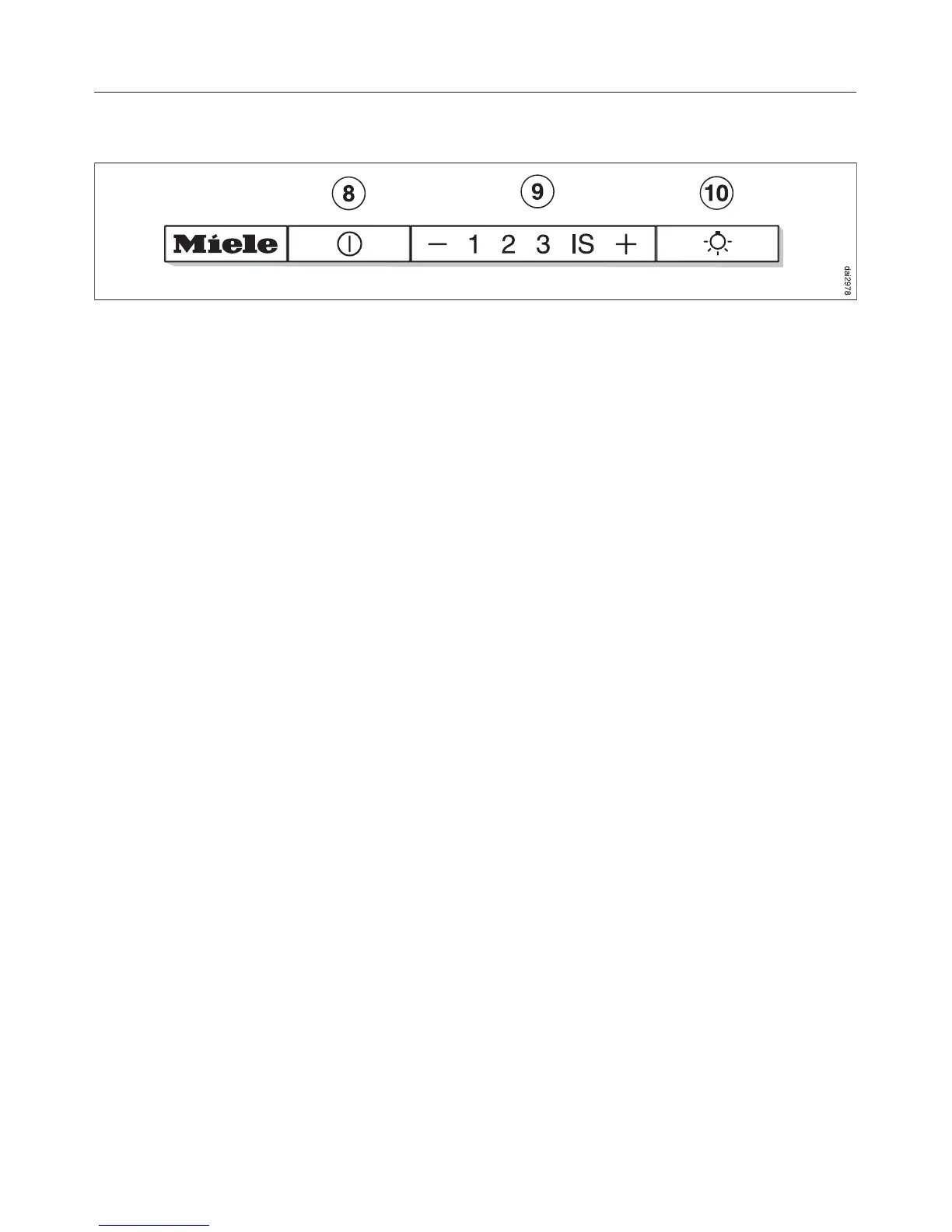

h On/Off button
i Power level buttons
Four fan speed selection
j Light button
Guide to the Ventilation System
9
