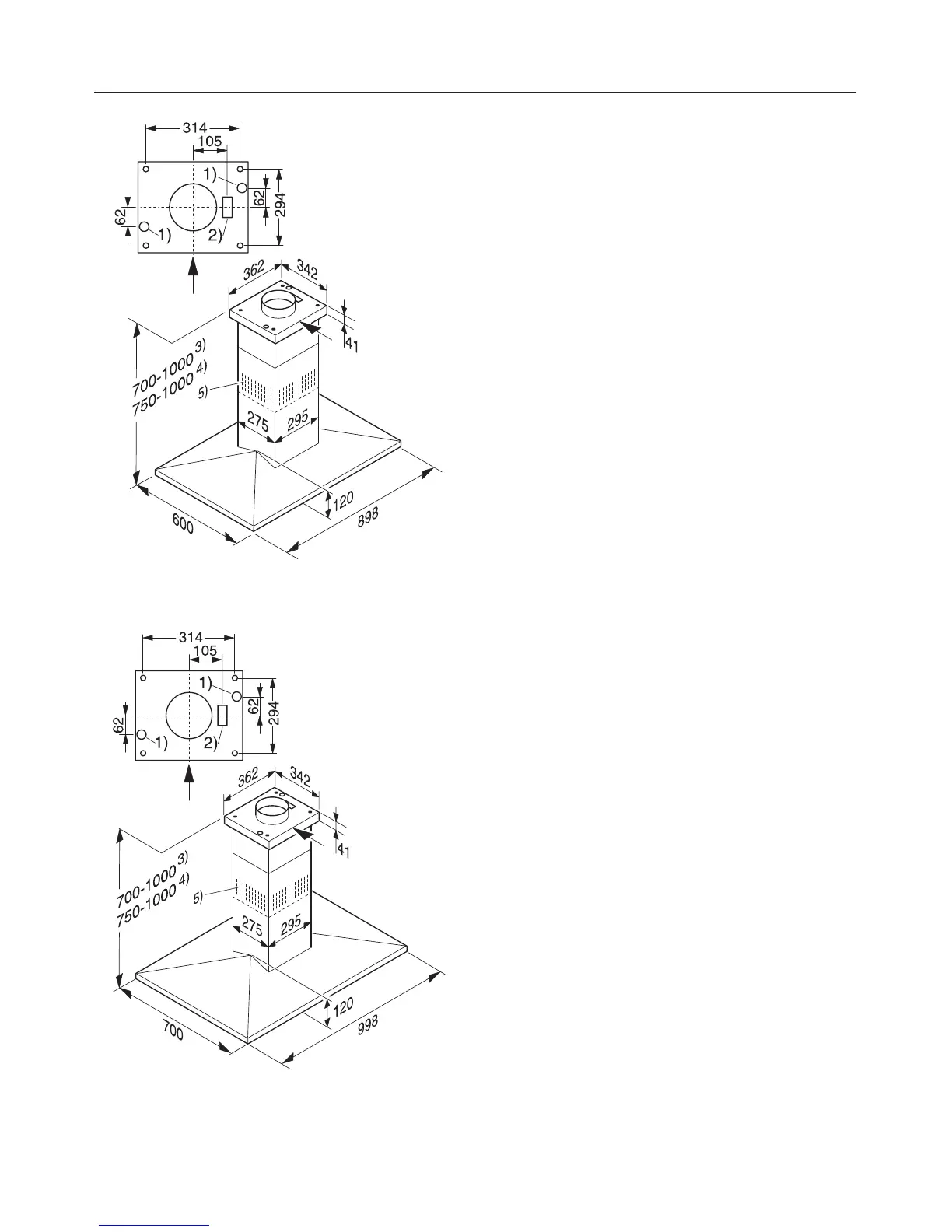

DA 400
(Ceiling fixing viewed from above)
DA 403
(Ceiling fixing viewed from above)
1) Alternative positions for feeding
through the mains cable
2) For ...EXT models only: cut-out for
feeding the connection cable through
to an external fan, min. 65 x 30 mm
3) Height range for appliance in
extraction mode
4) Height range for appliance in
recirculation mode
5) Ventilation grille position for
recirculation
Exhaust connection C 150 mm (not
needed for recirculation mode)
Appliance dimensions
26
