Installation
42

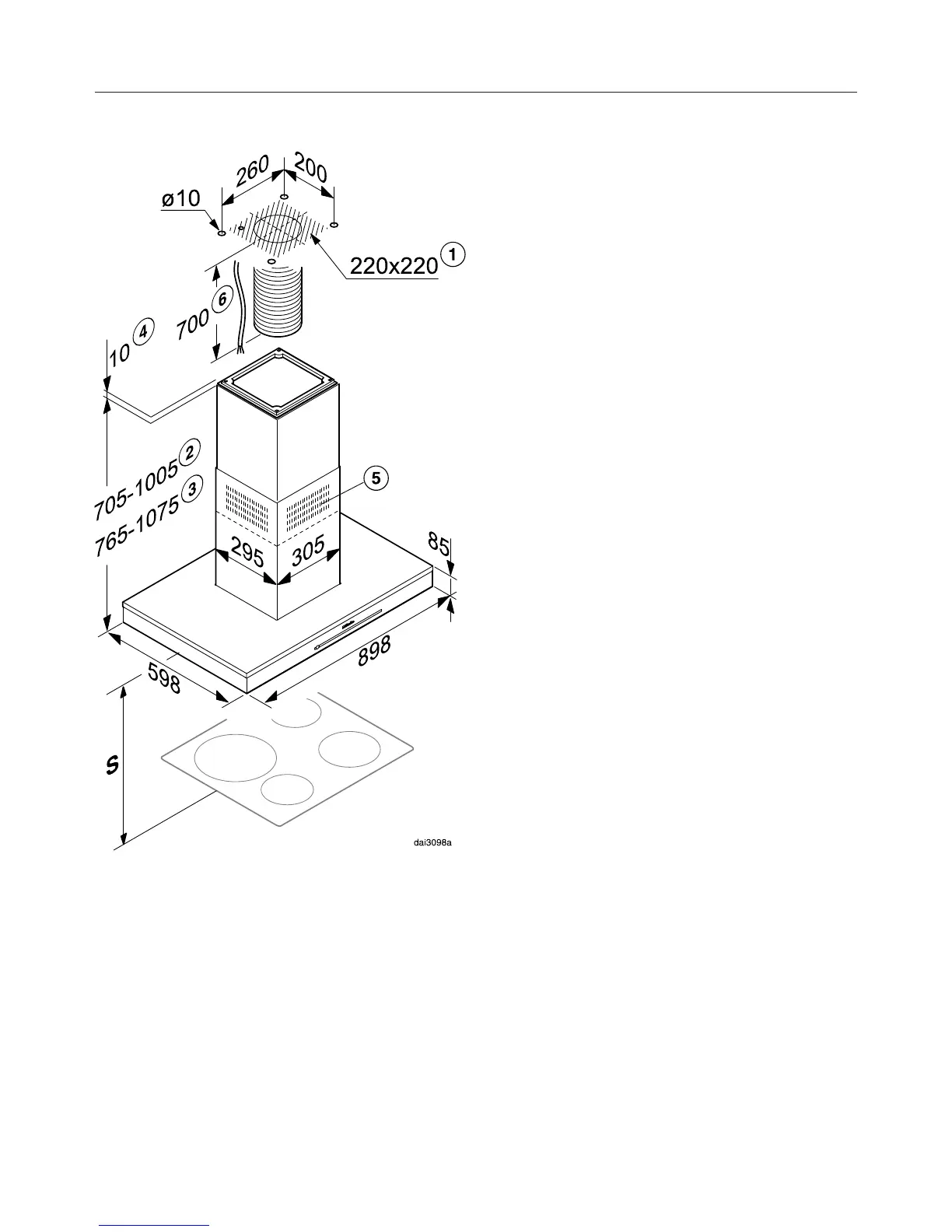

Appliance dimensions
a
Installation area: cut-out for feeding
through the exhaust ducting, the
mains cable and with ...EXT models,
the connection cable to the external
motor. In recirculation mode, only
the mains cable is required.
b
Possible height range for appliance
in extraction mode
c
Possible height range for appliance
in recirculation mode
d
Alternative installation with spacer
frame
e
Ventilation grille positioned at the
top for recirculation
f
A mains connection cable is required
to connect the cooker hood to the
socket in the ceiling. With extraction
mode flexible ducting is also
required.
Exhaust connection 150 mm
