Installation
50

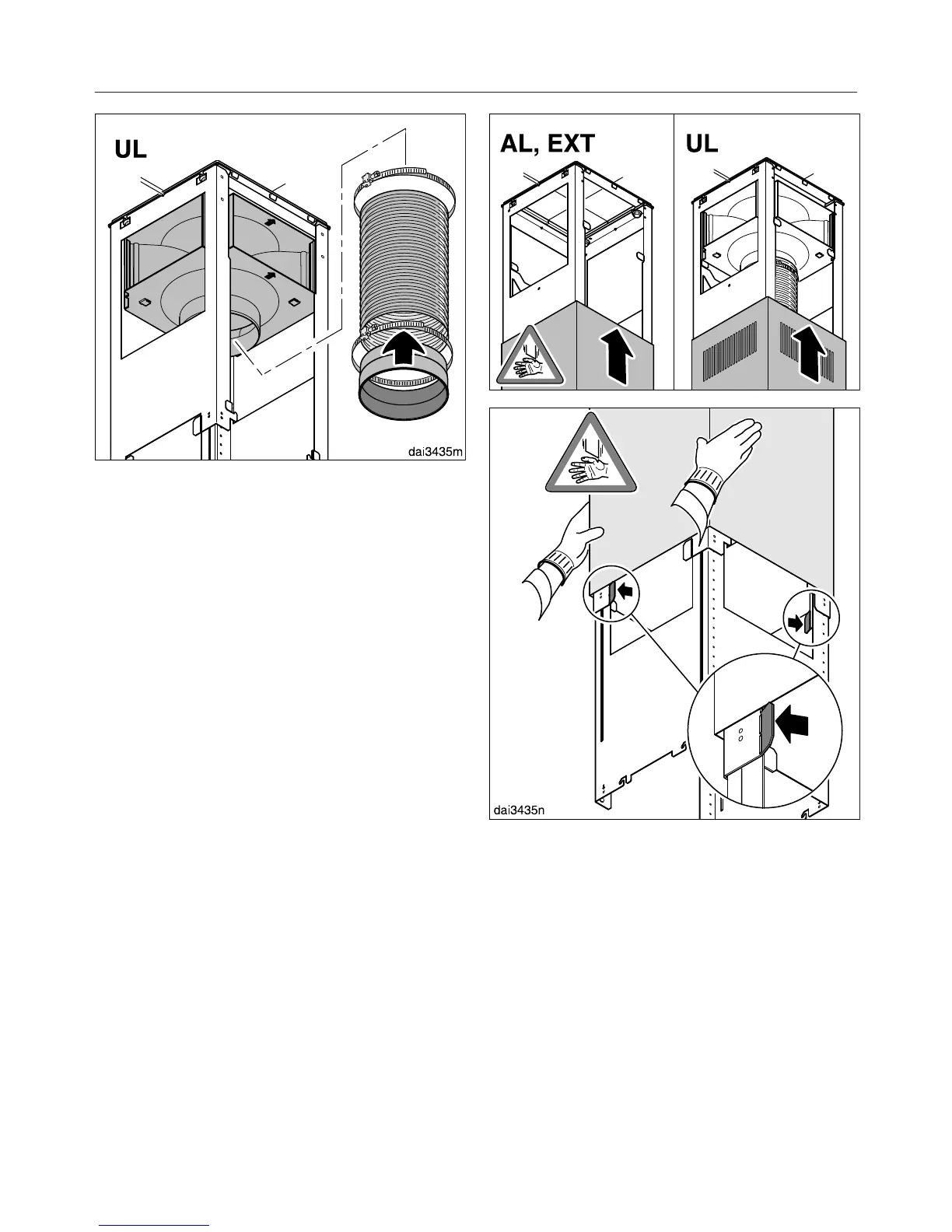

Secure the exhaust socket to the
exhaust ducting using a hose clip.
Secure the exhaust ducting to the
directional unit socket using a hose
clip.
Check that the exhaust ducting is
held securely.
Push the telescopic piece over the
installation frame:
– with the recirculation grilles at the
bottom for extraction mode (AL)/
external motor (EXT),
– with the recirculation grilles at the top
for recirculation mode (UL).
Bend the two retaining tabs outwards
to prevent the telescopic piece from
slipping down again.
