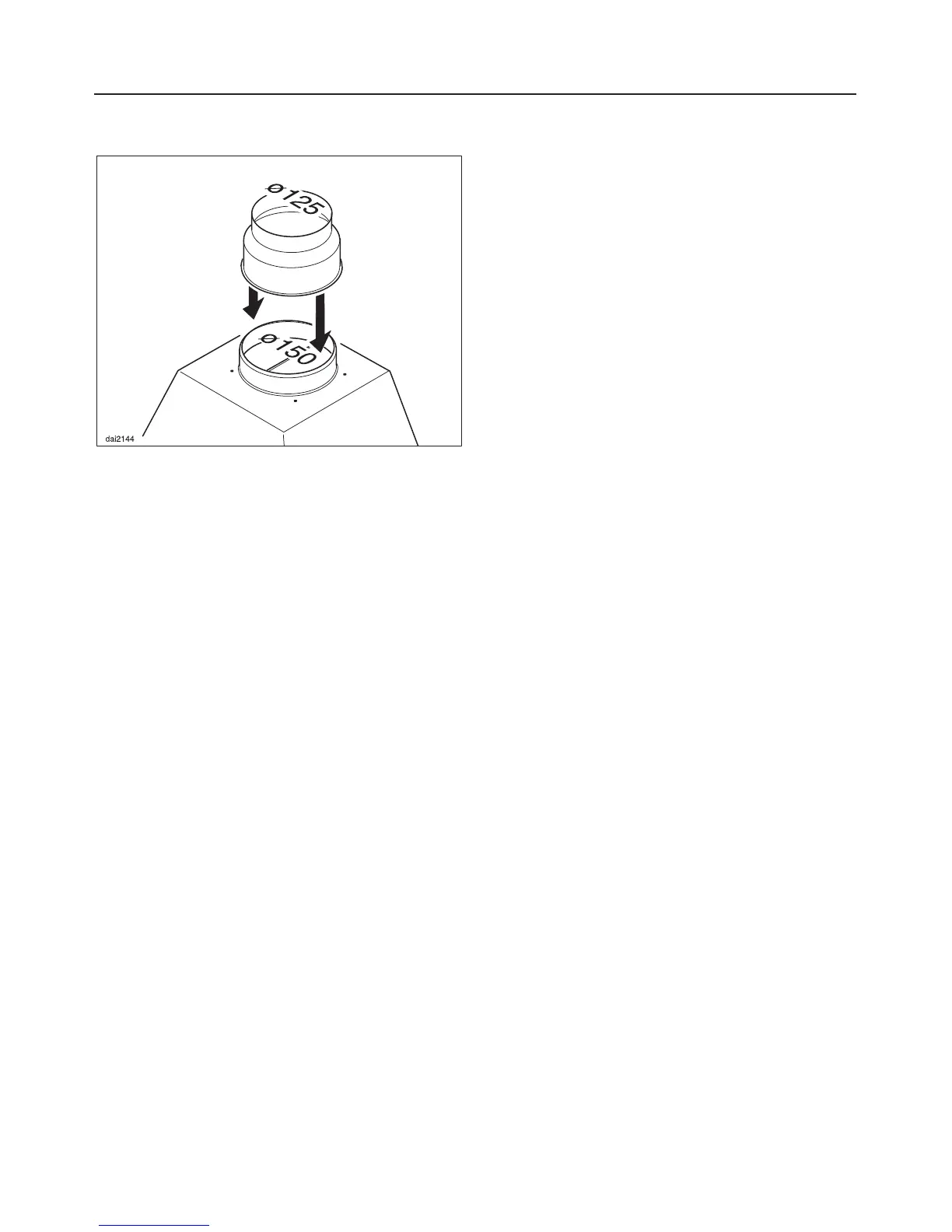

Reducing collar
^ DA 2280: The hood is designed for
use with a 6" (150 mm) diameter
exhaust hose.
If using 5" (125 mm) ducting, place
the supplied reducing collar into the
exhaust connection (see "Air
extraction").
^ DA 2210: The hood has two exhaust
connections for use with two 6"
(150 mm) diameter exhaust hoses.
A Y- adapter is supplied with the
hood. It may be used to feed the
exhaust from both connections to a 8"
(200 mm) diameter common duct.
Exhaust connection
^
Connect the ductwork to the exhaust
connection using appropriate
measures for the type of ductwork
being installed (supplied hose
clamps, duct tape, etc.). See "Air
extraction".
