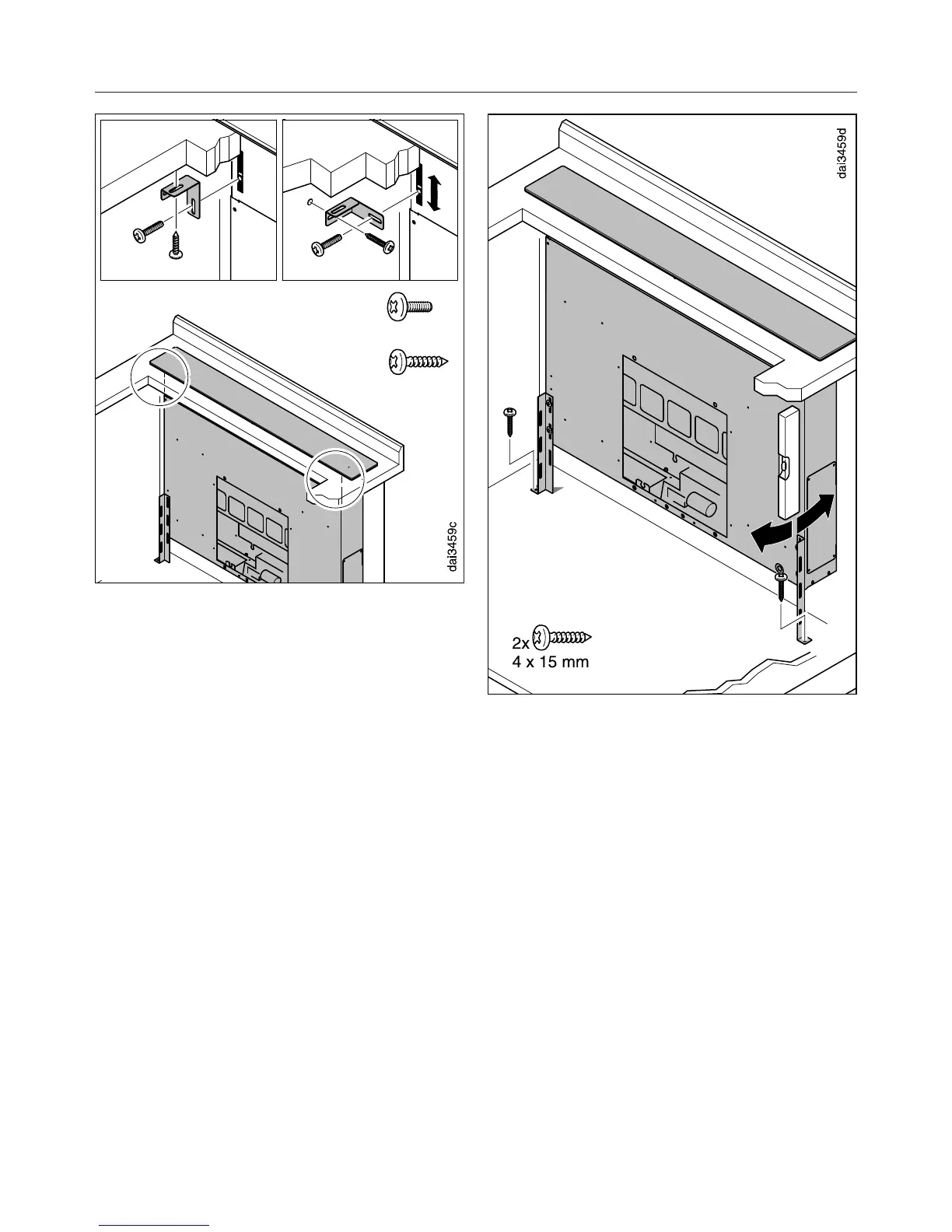

Fit the upper brackets loosely to the
downdraft extractor casing.
The brackets can be pushed into the
holder.
Push the brackets upwards and
screw them into place under the
worktop.
Tighten the screws on the casing.
Alternatively the brackets can also be
rotated when fitting them, so that the
downdraft extractor can be secured
to the sides of the housing unit.
Align the downdraft extractor
vertically and screw the brackets
securely to the base of the housing
unit.
