Installation
28

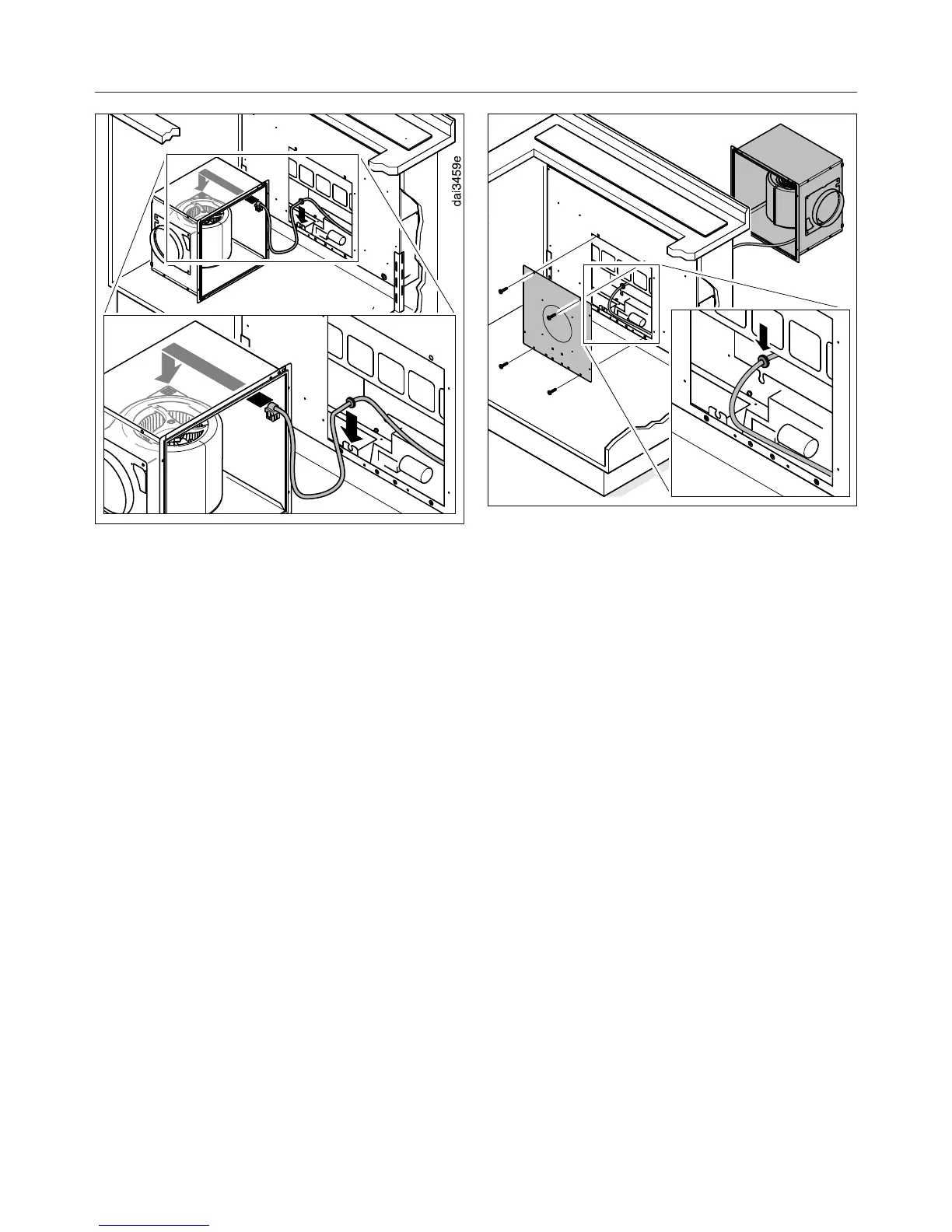

Guide the connection cable from the
downdraft extractor to the motor unit
and plug it into the motor.
Position the cable and push into the
holder on the casing with the cable
grommet supplied.
Alternatively the motor can be fitted
onto the downdraft extractor from
behind.
– To do this, remove the back cover
from the casing and fit it onto the
front.
– Place the cable grommet onto the
connection cable and insert it into
the holder on the rear opening of the
appliance.
