Guide to the appliance
13

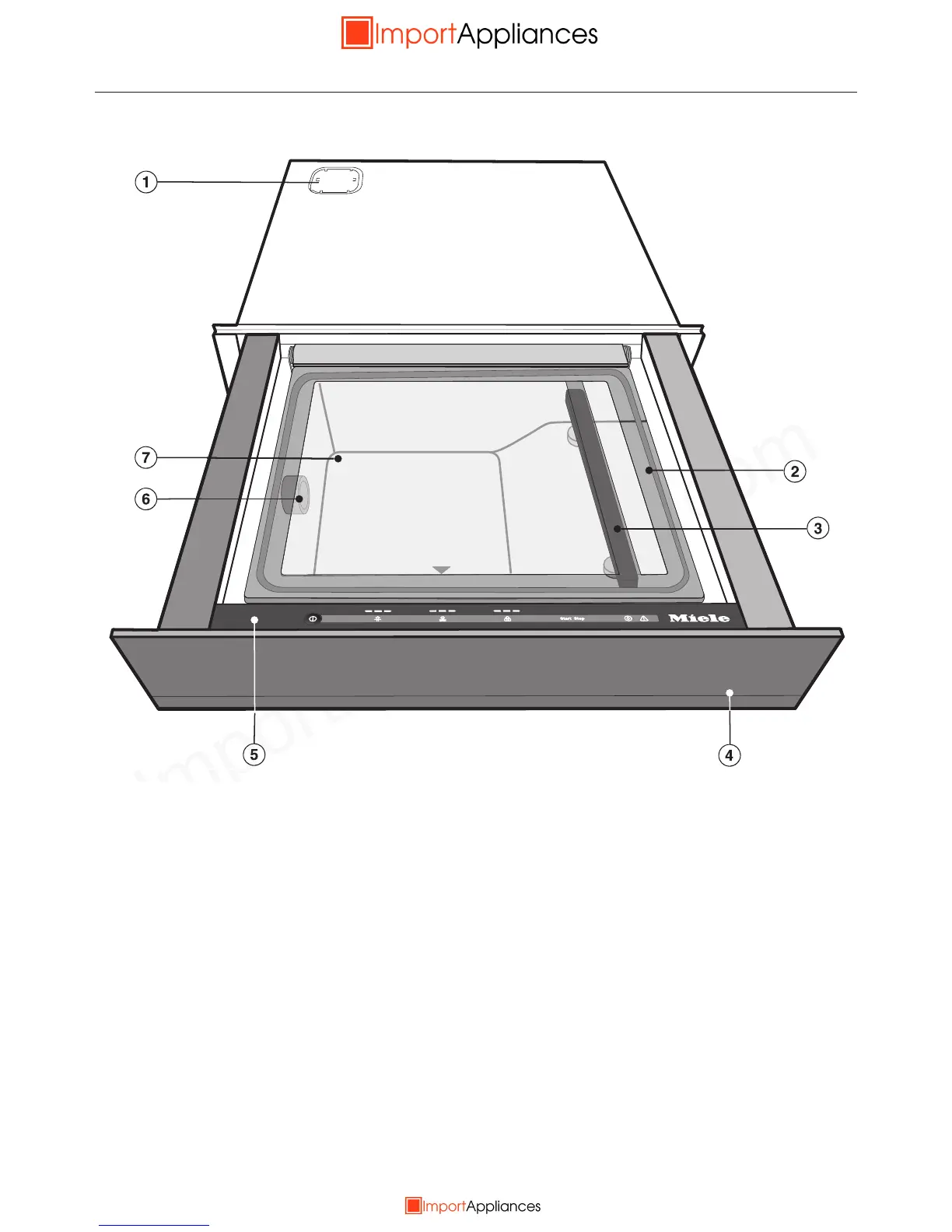

Overview of the drawer
a
Air filter cover (see "Installation")
b
Glass lid with chamber seal
Push down on the little black triangle
to close the glass lid.
c
Sealing bar in the vacuum chamber
and counterpressure bar on the un-
derside of the glass lid
d
Push2open mechanism
The drawer can be opened by press-
ing lightly in the middle of the drawer
front.
e
Control panel
f
Vacuum pump air intake valve / Va-
cuum adapter connection
g
Vacuum chamber
