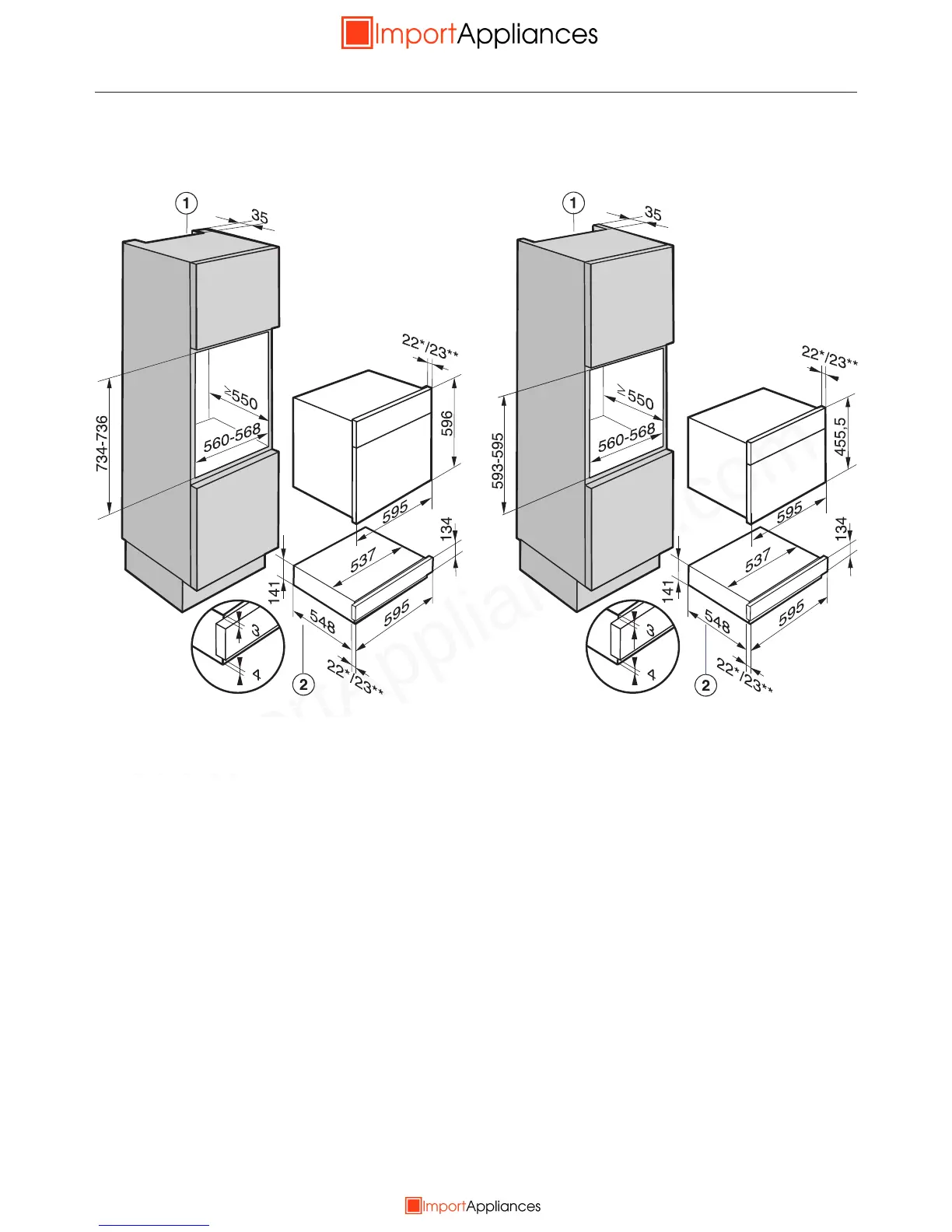

Building-in dimensions
40
EVS with H2xxxB(P) /
H6xxxB(P)
a
Ventilation cut-out required when in-
stalled with a pyrolytic oven
b
Building-in dimension including
mains supply cable plug connector
Mains connection cable
L=2200mm
*Glass front / **metal front
EVS with H6xxxBM(BP) /
M61xx / M62xx
a
Ventilation cut-out required when in-
stalled with a pyrolytic oven
b
Building-in dimension including
mains supply cable plug connector
Mains connection cable
L=2200mm
*Glass front / **metal front
