Installation
*INSTALLATION*
49
Appliance
furniture
door
thickness
A [mm]
Gap X [mm]
for different
edge radiiB
R0 R1.2 R2 R3
≥16–19 min. 3
20 5 4 4 3.5
21 5.5 5 4.5 4
22 6.5 6 5.5 5

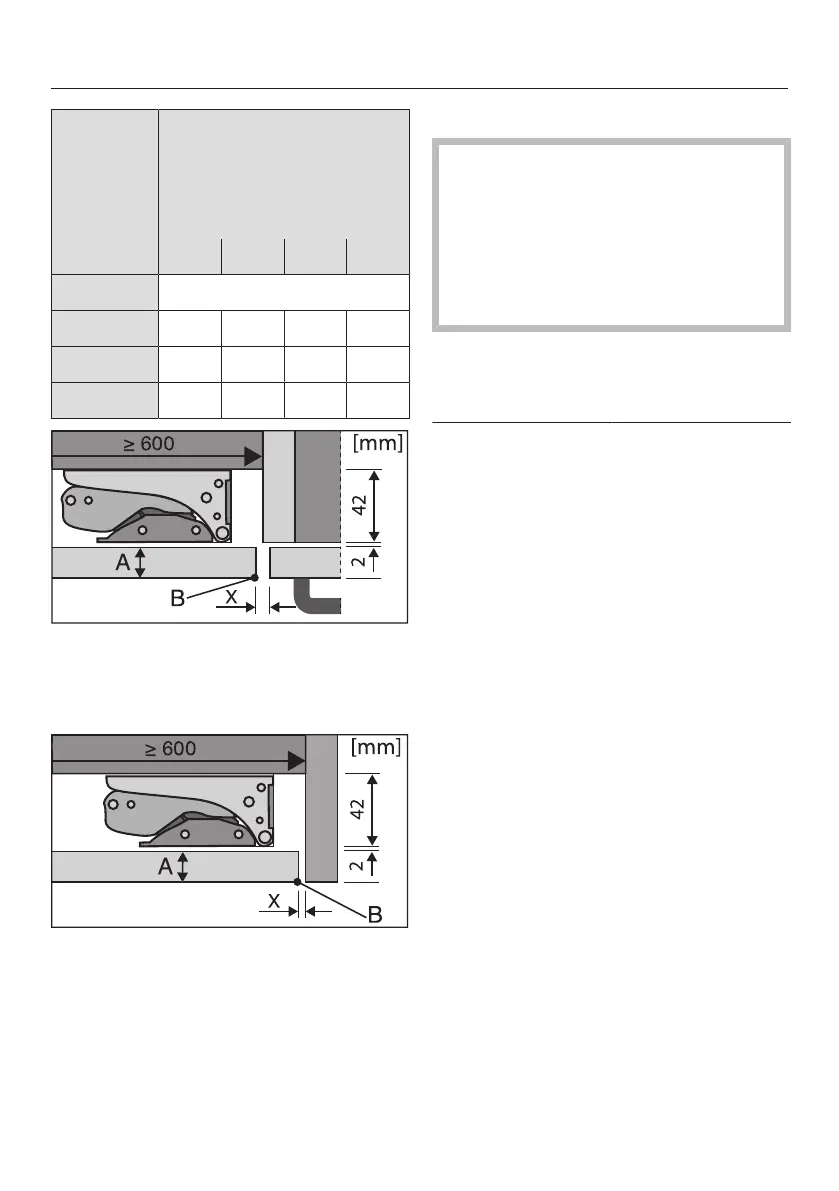

Adjoining kitchen furniture front
A=Furniture front thickness
B=Edge radius
X=Gap
Adjoining side wall
A=Furniture front thickness
B=Edge radius
X=Gap
Tip: Fit a spacer between the housing
unit carcase and the side wall. This way
you will get a sufficiently wide gap.
Weight of the furniture door
 If the furniture door panel is too
heavy, this can cause damage.
Fitting a furniture door panel which is
heavier than the maximum permitted
weight could damage the hinges.
This can cause subsequent func-
tional problems.
Refrigeration ap-
pliance
Maximum weight
of furniture door in
kg
F31202Ui 10
